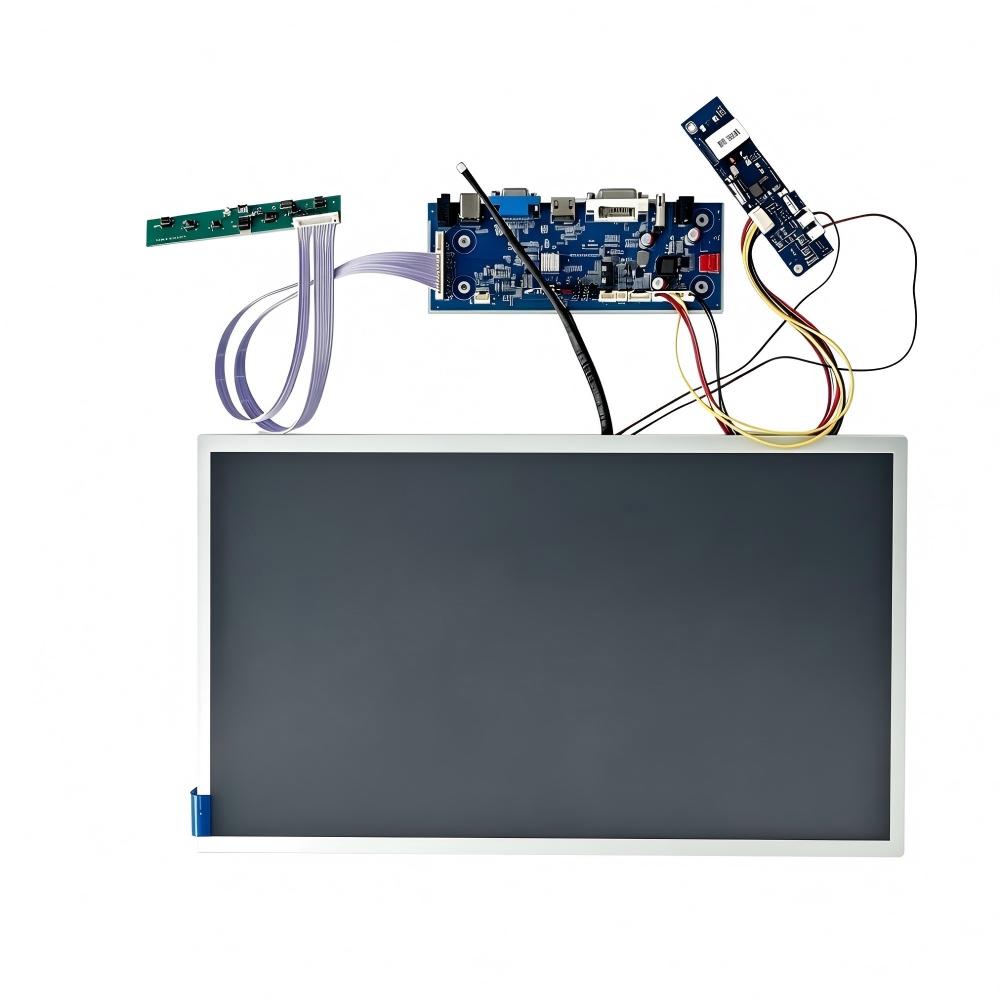

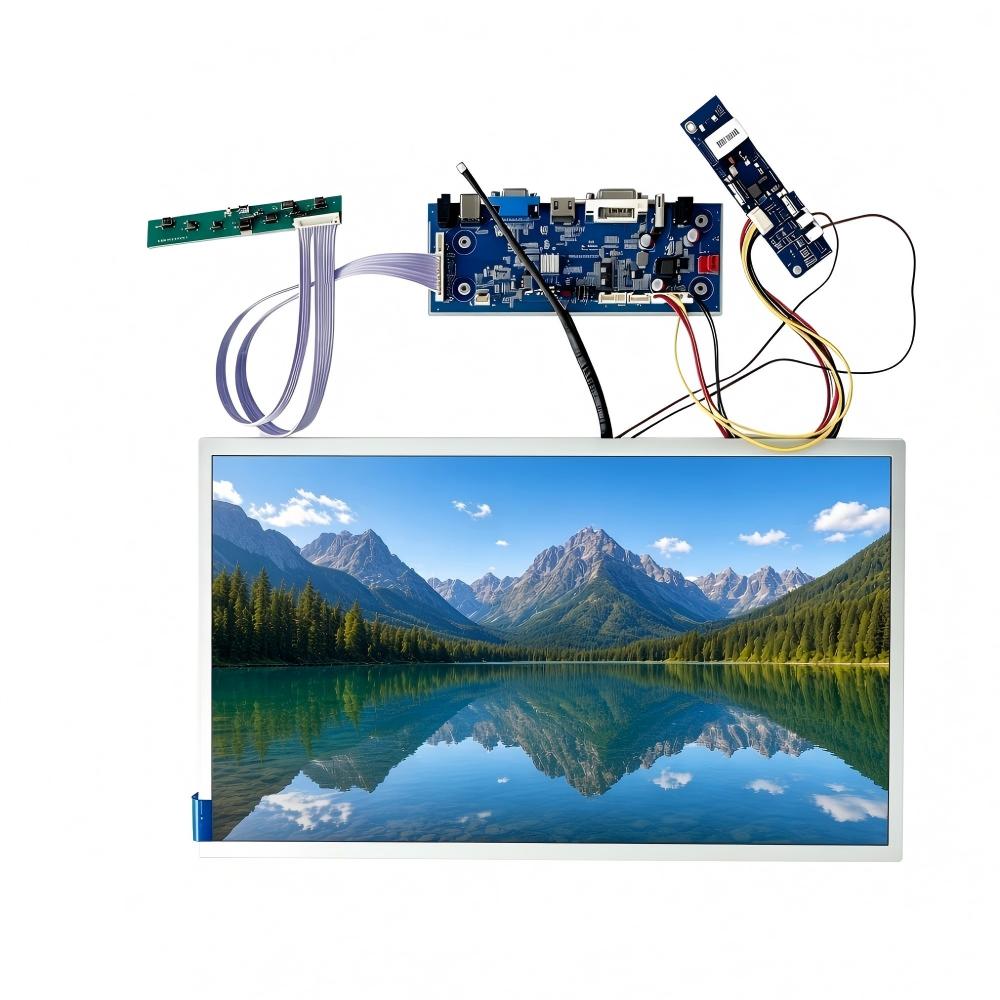

The DBT185BHN30L100D is an 18.5-inch Full HD TFT-LCD module designed for commercial display equipment, digital signage systems, retail display solutions, self-service terminals, and other embedded commercial display applications.

Featuring a 1920 × 1080 Full HD resolution, 16.7 million colors, a typical 1200:1 contrast ratio, and an LVDS interface, this LCD module provides a practical display platform for commercial equipment manufacturers that need to integrate an 18.5-inch screen into their own enclosure, electronics, and system architecture.

The module has a 408.96 × 230.04 mm active display area and an overall outline of approximately 430.37 × 254.6 × 11.2 mm, making it suitable for compact commercial display products where an 18.5-inch widescreen format provides a useful balance between visual area and installation space.

The DBT185BHN30L100D uses a 30-pin LVDS interface and a normally black display mode. Its optical specifications include a typical 1200:1 contrast ratio, approximately 70% NTSC color gamut, and a typical 30 ms response time. The module also features an AG25, 3H surface treatment for the display surface.

For commercial display manufacturers, this module can serve as a core LCD component for customized display products rather than a complete standalone monitor. The display can be integrated with a suitable controller board, enclosure, media player, touch solution, and other system components according to the requirements of the finished commercial display.

Key Features

• 18.5-inch TFT-LCD module
• 1920 × 1080 Full HD resolution
• 16:9 widescreen format
• LVDS interface
• 30-pin interface connector
• 16.7M colors with 8-bit color depth
• Normally Black display mode
• 408.96 × 230.04 mm active area
• Typical 1200:1 contrast ratio
• Typical 85° horizontal and vertical viewing angle
• Approximately 70% NTSC typical color gamut
• Typical 30 ms response time
• AG25, 3H surface treatment
• LED backlight
• 5V typical LCD power input
• 12V typical LED driver supply
• RoHS compliant
• -20°C to +70°C maximum operating-temperature rating
• Suitable for embedded commercial display applications

Technical Specifications

The electrical specification defines a 4.5–5.5V LCD module supply range with 5V typical input. The LED driver is specified for a 10.8–13.2V supply range with 12V typical input. Typical LED power consumption is 18W, with a maximum specification of 20W.

Designed for Embedded Commercial Display Systems

Commercial display equipment often requires more than a standard consumer monitor. Manufacturers may need to integrate a display into a customized housing, combine it with a media player or control board, add touch functionality, or develop a purpose-built screen for a specific retail or public-information environment.

The DBT185BHN30L100D provides an 18.5-inch Full HD LCD platform that can be incorporated into such systems.

Its 16:9 format and 1920 × 1080 resolution are well suited to commercial content such as promotional graphics, product information, menus, service instructions, digital notices, and interface-based content.

The module format also gives equipment manufacturers greater freedom over the external design. Instead of purchasing a complete display with a fixed enclosure, system integrators can build the LCD into their own commercial display architecture.

This approach can be particularly useful for OEM and ODM projects where the final product needs to match a specific mechanical structure, installation environment, brand design, or operating system.

Commercial Applications

Digital Signage Displays

The 18.5-inch Full HD format is suitable for compact digital signage installations where a screen is required to display advertisements, promotional content, product information, or public messages.

The 1920 × 1080 resolution provides sufficient pixel density for graphical advertising content, text, images, and video-based promotional material.

For manufacturers developing customized digital signage products, the LCD module can be integrated with a compatible controller or media player and installed into a dedicated enclosure.

Indoor Advertising Displays

Indoor advertising equipment requires a display that can present promotional graphics and multimedia content in locations such as retail stores, commercial buildings, service areas, and public venues.

The Full HD resolution and 16:9 format make the module suitable for content designed around the standard widescreen commercial-media format.

The normally black display mode and typical 1200:1 contrast ratio can also support clear separation between dark and bright image areas under suitable indoor viewing conditions.

Queue Management Displays

Commercial service environments may use digital displays to show queue numbers, service counters, instructions, or customer notifications.

An 18.5-inch screen provides enough space for large numbers, text information, graphical indicators, and other interface elements.

The LCD module can be integrated into a customized queue management terminal or wall-mounted display enclosure.

Reception and Wayfinding Displays

Commercial buildings, retail facilities, exhibition venues, hotels, and other public-facing environments can use digital displays for reception information and wayfinding.

An embedded 18.5-inch display can present directions, facility information, announcements, floor information, or branded content.

The 1920 × 1080 resolution provides sufficient workspace for graphical layouts combining text, icons, maps, and images.

Public Information Displays

Public information terminals require clear visual presentation of instructions, notices, schedules, or location information.

The DBT185BHN30L100D can be integrated into indoor public-information equipment where the system designer requires an 18.5-inch Full HD LCD module rather than a complete commercial monitor.

Commercial Equipment Displays

Many commercial machines and equipment systems require an integrated display to communicate operating information to users.

The LCD can be incorporated into customized commercial equipment where an 18.5-inch display area is required for menus, instructions, status information, advertising content, or user interaction.

18.5-Inch Full HD Display for Flexible Commercial Product Design

One of the advantages of using an LCD module is the flexibility it provides during product development.

A complete commercial monitor normally includes the enclosure, controller, power system, mounting structure, and other components as a predefined product. An LCD module allows an OEM or ODM manufacturer to develop these components around its own product architecture.

For example, a commercial display manufacturer may design a slim enclosure around the 430.37 × 254.6 × 11.2 mm module outline, integrate a suitable display controller, and then configure the finished product according to the intended installation environment.

The active area of 408.96 × 230.04 mm provides a relatively large visual region while maintaining the familiar 16:9 widescreen format.

This makes the module a practical starting point for customized commercial displays where mechanical integration and system-level flexibility are important.

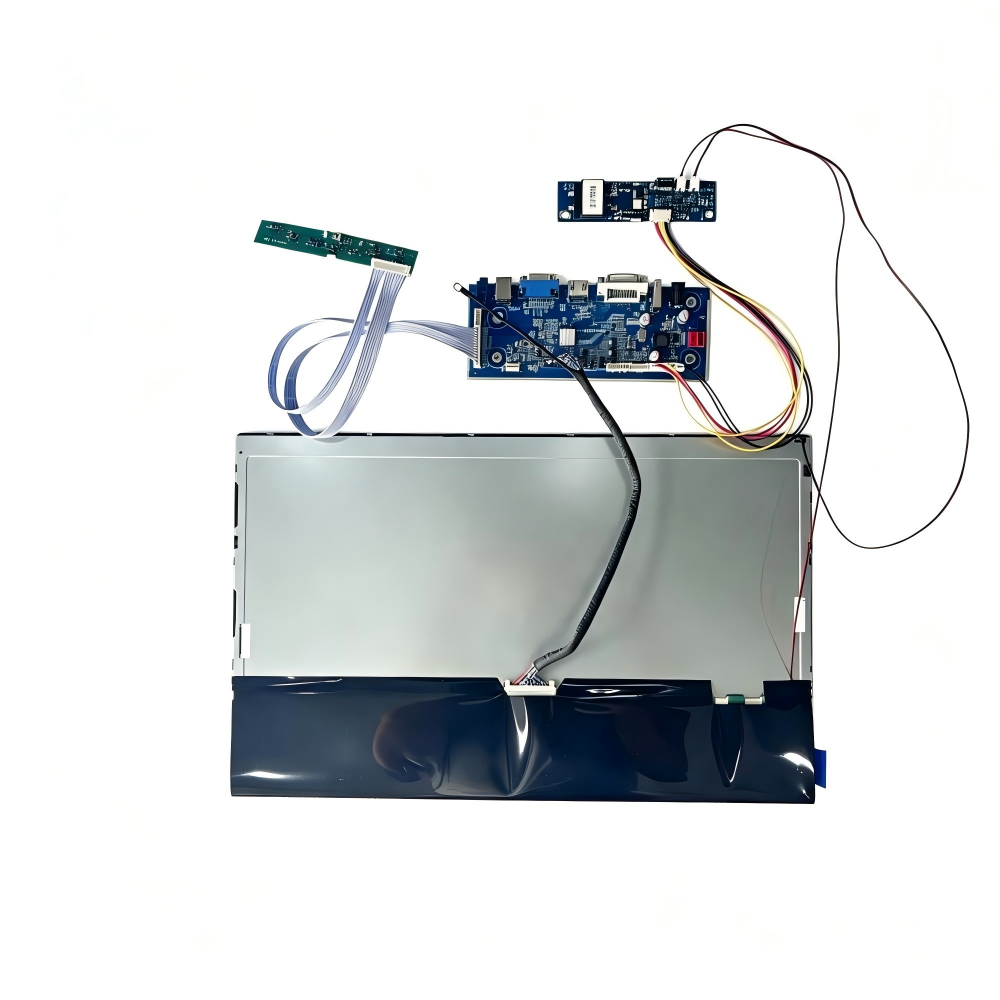

LVDS Interface and System Integration

The DBT185BHN30L100D uses an LVDS interface with a 30-pin connector. The specified connector is IS100-L30R-C23 (UJU) or an equivalent connector.

The interface provides differential LVDS data inputs, clock inputs, ground connections, and 5V power connections.

For commercial display equipment manufacturers, the host controller should be checked for compatibility with the LCD's LVDS configuration, timing requirements, connector definition, and electrical specifications before mass production.

The datasheet provides detailed LVDS receiver timing parameters and signal timing information for engineering validation.

This is particularly important for OEM projects where the LCD module needs to be connected to a custom controller board or an existing commercial display motherboard.

Optical Performance for Indoor Commercial Displays

The DBT185BHN30L100D provides a typical 1200:1 contrast ratio, with a minimum specified value of 900:1.

The specified viewing angle is 80° minimum and 85° typical in the horizontal and vertical directions under the datasheet's contrast-ratio measurement condition.

The typical color gamut is approximately 70% NTSC, while the specified minimum is 65% NTSC.

The typical response time is 30 ms, with a maximum specification of 35 ms.

These specifications make the panel suitable for a wide range of indoor commercial content, including advertising graphics, menus, information interfaces, promotional material, and user-facing commercial system interfaces.

The module also uses an AG25, 3H surface treatment, which is part of the specified panel configuration.

Thermal and Reliability Considerations

The DBT185BHN30L100D has a maximum rated operating-temperature range of -20°C to +70°C and a storage-temperature range of -30°C to +80°C.

The datasheet also specifies reliability testing including high-temperature storage, low-temperature storage, high-temperature operation, low-temperature operation, high-temperature/high-humidity operation, thermal shock, and image-sticking evaluation.

For commercial display equipment, the final system's thermal behavior depends on the enclosure, controller electronics, backlight operation, ventilation, installation position, and surrounding environment.

Therefore, equipment manufacturers should evaluate the complete finished product rather than assuming that the LCD's maximum rated temperature automatically represents the operating capability of the entire commercial display.

The datasheet also recommends contacting the supplier for application engineering advice when the module is required to operate under special conditions such as extended 7×24 operation, high humidity, extreme temperatures, or prolonged display of static images.

Integration Recommendations

Before using the DBT185BHN30L100D in a commercial display product, manufacturers should verify the following:

Mechanical integration: Confirm the LCD outline, active area, mounting structure, connector location, and enclosure clearance.

Electrical compatibility: Verify the 5V LCD supply and 12V typical LED-driver supply requirements.

LVDS compatibility: Confirm the host controller's LVDS signal configuration and timing.

Thermal management: Evaluate heat generation inside the final enclosure, particularly for continuously operating commercial equipment.

Touch integration: If the finished product requires user interaction, an appropriate touch panel and controller should be evaluated separately.

Operating environment: Confirm that the actual installation environment remains within the module's specified operating conditions.

Static image management: For applications displaying the same image for extended periods, appropriate content-management or screen-saver strategies should be considered to reduce the risk of image sticking.

Frequently Asked Questions

What is the DBT185BHN30L100D?

The DBT185BHN30L100D is an 18.5-inch TFT-LCD module with 1920 × 1080 Full HD resolution, an LVDS interface, and 16.7 million colors. It can be integrated into customized commercial display equipment.

What commercial displays can use this 18.5-inch LCD?

The module can be considered for digital signage, indoor advertising displays, retail display systems, self-service kiosks, queue management displays, public information terminals, reception displays, wayfinding systems, and other embedded commercial display equipment.

Does the LCD module have a Full HD resolution?

Yes. The panel provides a 1920 × 1080 pixel Full HD resolution in a 16:9 format.

What interface does the module use?

The DBT185BHN30L100D uses an LVDS interface with a 30-pin connector. System designers should verify LVDS compatibility with their controller before integration.

What is the typical contrast ratio?

The specified typical contrast ratio is 1200:1, with a minimum specification of 900:1.

What is the viewing angle?

The viewing angle is specified at 80° minimum and 85° typical in both horizontal and vertical directions under the stated measurement conditions.

Can this LCD be integrated into a touchscreen kiosk?

The LCD module can be used as the display component of a customized kiosk. A suitable touch panel and touch controller would need to be selected separately according to the kiosk's mechanical and functional requirements.

Is this an outdoor sunlight-readable display?

The supplied datasheet does not specify the module as a sunlight-readable or outdoor high-brightness display. Therefore, this product should not be marketed as a sunlight-readable outdoor display without additional engineering confirmation.

Can the module be used for 24/7 commercial display operation?

The datasheet does not provide a general 24/7 operating guarantee. For continuous operation or other special operating conditions, application engineering consultation is recommended before production deployment.

Can the LCD be customized for a commercial display project?

For OEM/ODM projects, customers can discuss the required display configuration, mechanical integration, controller compatibility, touch requirements, and other system-level requirements with Duobond Display.
