Precision 32-Inch 4K LCD Module DBT320DZN51E050B for Medical Equipment

Key Takeaways

• 32-inch 3840×2160 (4K UHD) LCD module delivering ultra-high definition and precise color for medical imaging.
• High contrast ratio of 1500:1 and 16.7M colors (RGB True 8-bit) ensure accurate visualization.
• Anti-Glare surface (3H, Haze 25%) minimizes reflections in bright surgical or diagnostic environments.
• Operational stability from 0°C to +50°C with LED backlight lifespan up to 30,000 hours.
• 8-lane eDP interface supports stable 4K transmission, optimized for surgical monitors, PACS workstations, and endoscopic consoles.
• RoHS compliant and high reliability for continuous medical use.

Product Overview

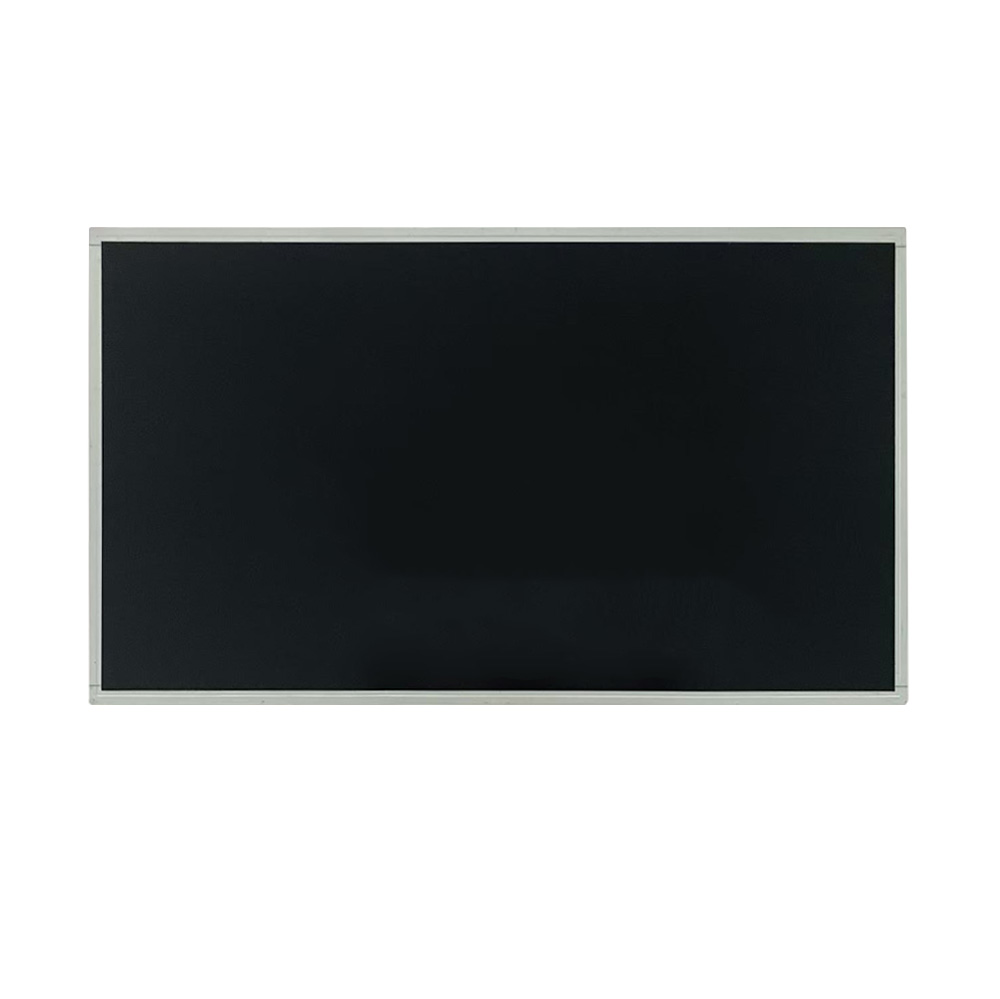

The DBT320DZN51E050B 32-inch 4K LCD module is designed for professional medical equipment, providing precise color, high contrast, and ultra-clear imaging for surgical monitors, PACS workstations, C-arm displays, and endoscopic consoles. Its combination of high resolution and anti-glare technology ensures confident diagnostics and accurate procedure guidance.

With a robust LED backlight, high optical performance, and stable operation under clinical lighting conditions, this module supports OEM integration for diagnostic machines, medical consoles, and educational simulation devices.

Advanced Visual Technology

High Resolution & Color Accuracy

Active matrix TFT-LCD in normally black mode delivers 4K UHD resolution with 16.7M colors (RGB True 8-bit). Supports 1.07B colors (10-bit input, 8-bit+FRC output) for precise color reproduction in critical medical imaging.

Anti-Glare Surface & Optical Performance

Anti-Glare coating (3H, Haze 25%) reduces reflections and ensures visibility in bright operating rooms or diagnostic labs, maintaining image clarity for multiple observers.

High Reliability & Longevity

Operational range 0°C to +50°C, LED backlight life up to 30,000 hours, and full RoHS compliance ensure continuous and environmentally responsible operation.

Optimized Interface & Power Efficiency

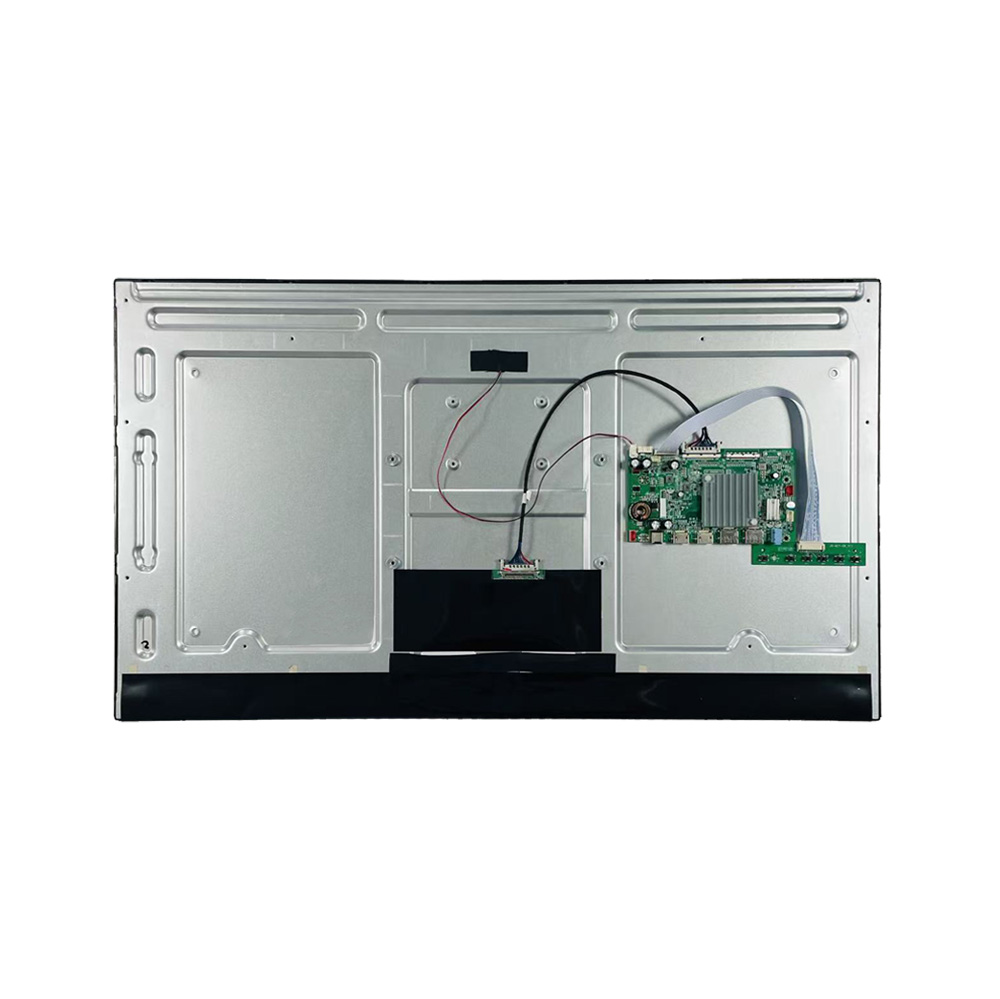

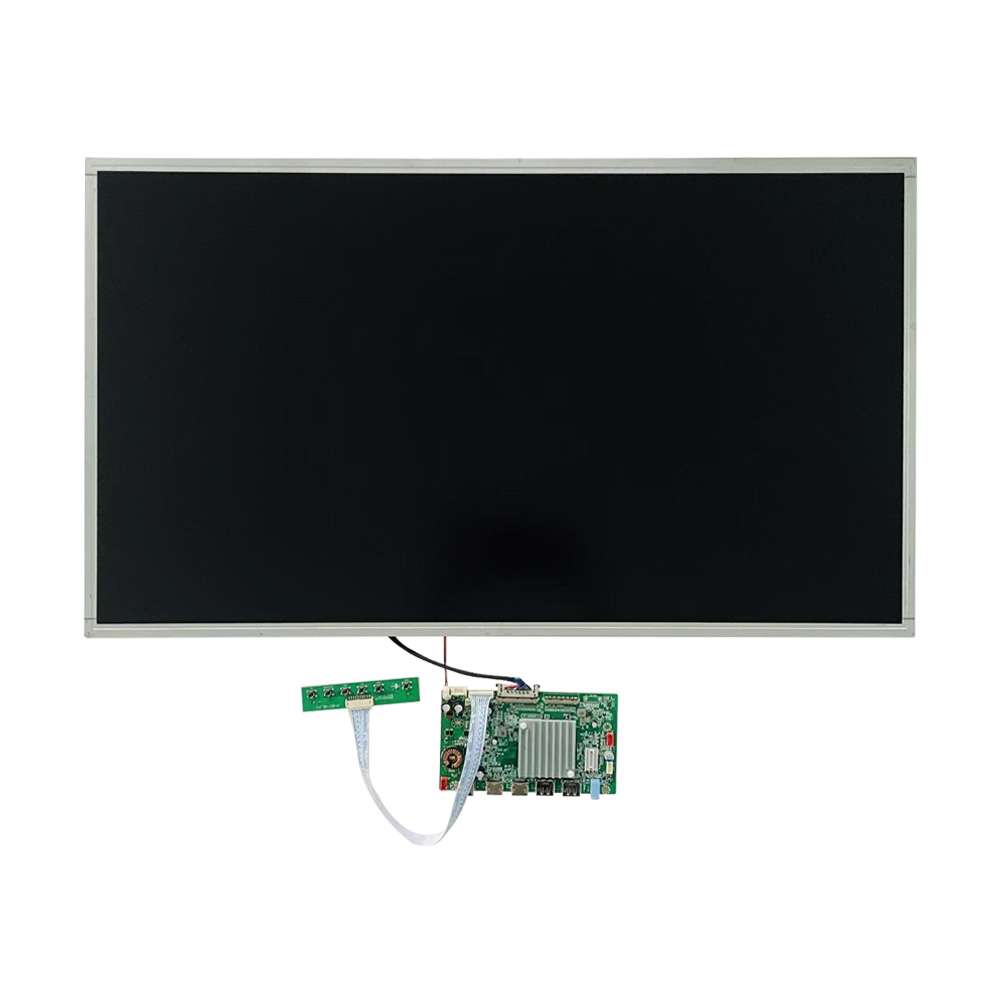

8-lane Embedded DisplayPort (eDP) interface enables stable 4K signal transmission, with typical power consumption of 12.98W at 60Hz and nominal input voltage of +12V, maintaining low thermal output.

Technical Specifications

Application Scenarios

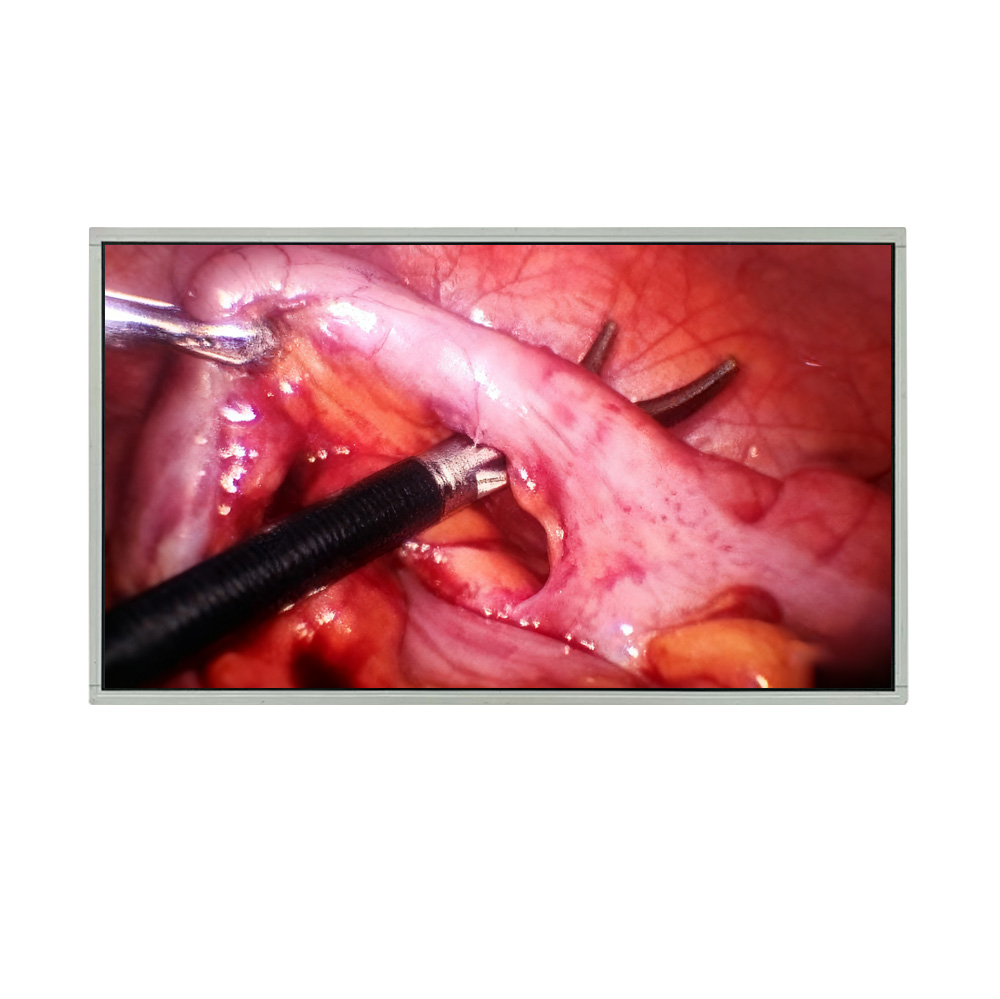

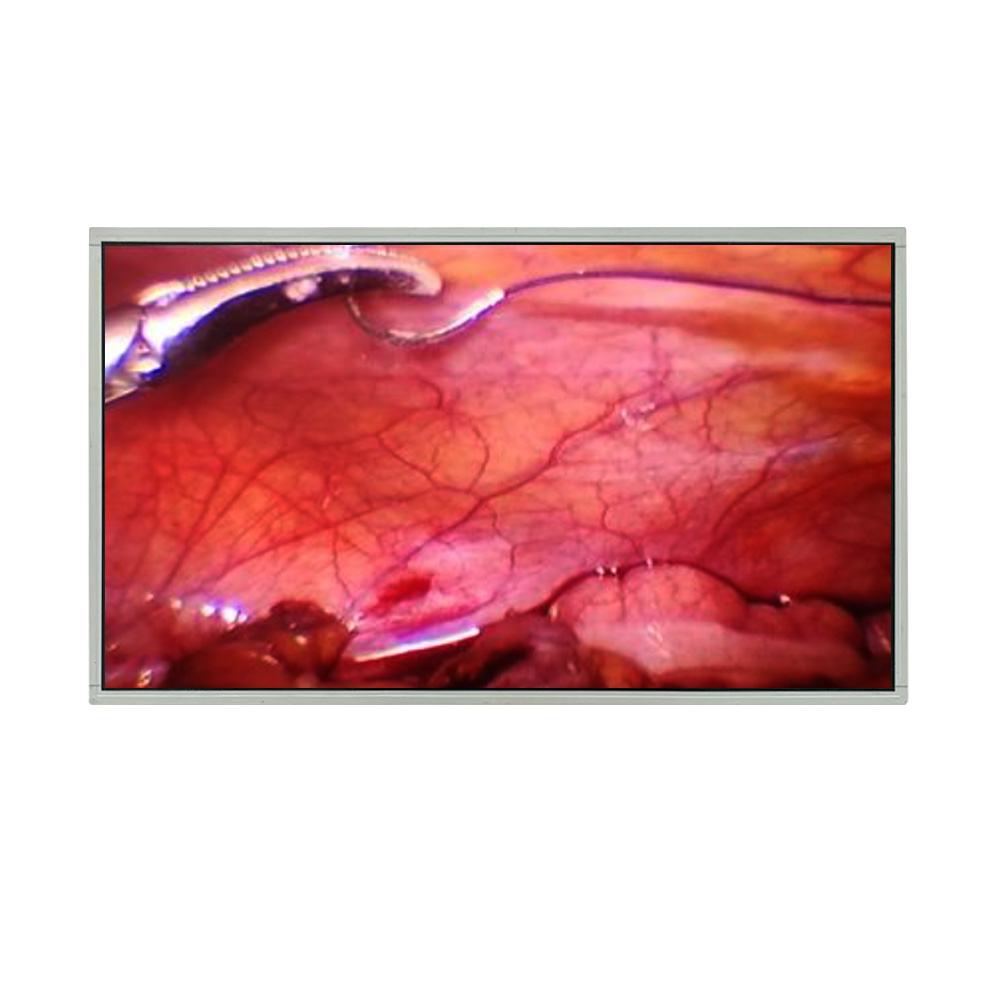

Surgical and Endoscopic Monitors

High brightness and contrast enhance visualization for minimally invasive procedures, supporting confident surgical operations.

Radiology & PACS Workstations

Precise display of X-rays, MRIs, and CT scans for accurate diagnostic interpretation in clinical settings.

Medical Equipment Consoles & Embedded Devices

Integration with diagnostic and imaging machines improves workflow efficiency and operational reliability.

Medical Simulation & Training

Realistic image quality for effective medical education, training, and procedural simulations.

Frequently Asked Questions

Can this display be integrated into medical equipment?

Yes, it supports OEM integration, touch panels, and custom solutions for medical devices.

What is the brightness of this 32-inch 4K module?

Typical white luminance is 500 cd/m², suitable for clinical environments.

What is the operating temperature range?

The module operates reliably from 0°C to +50°C.
