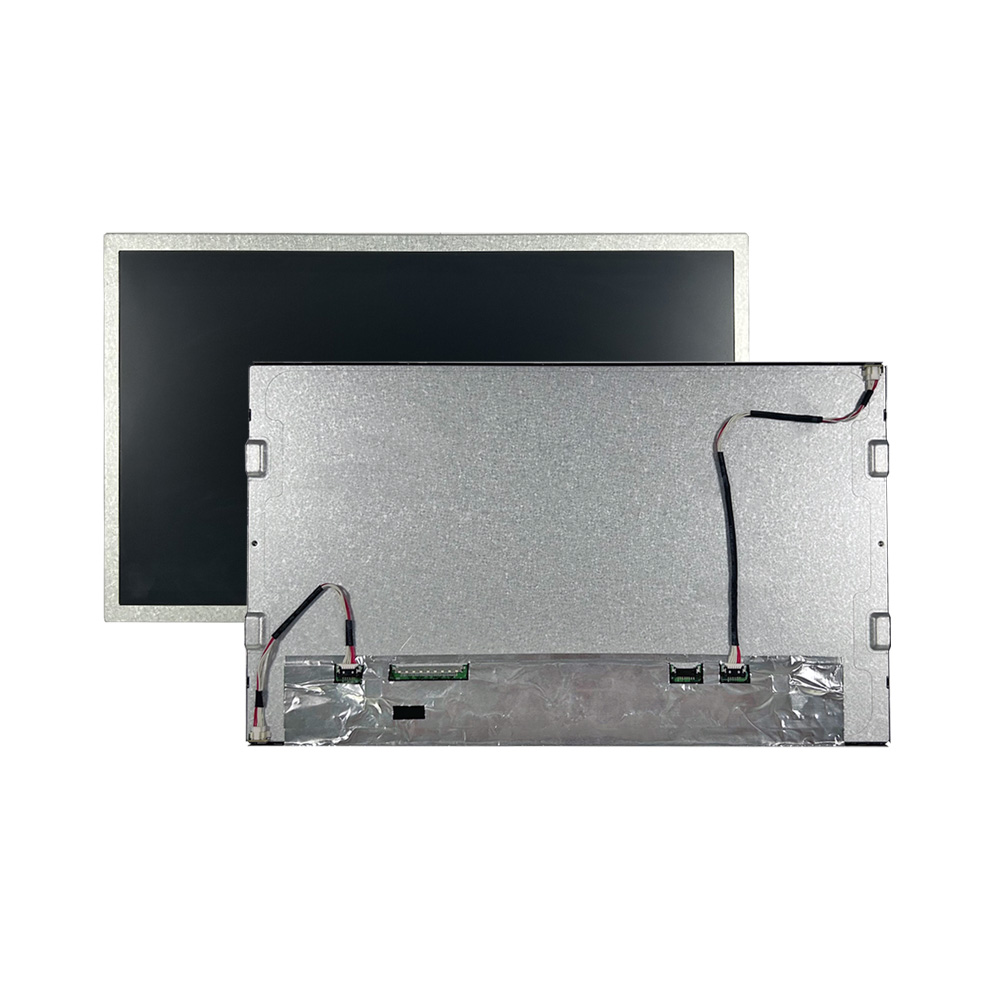

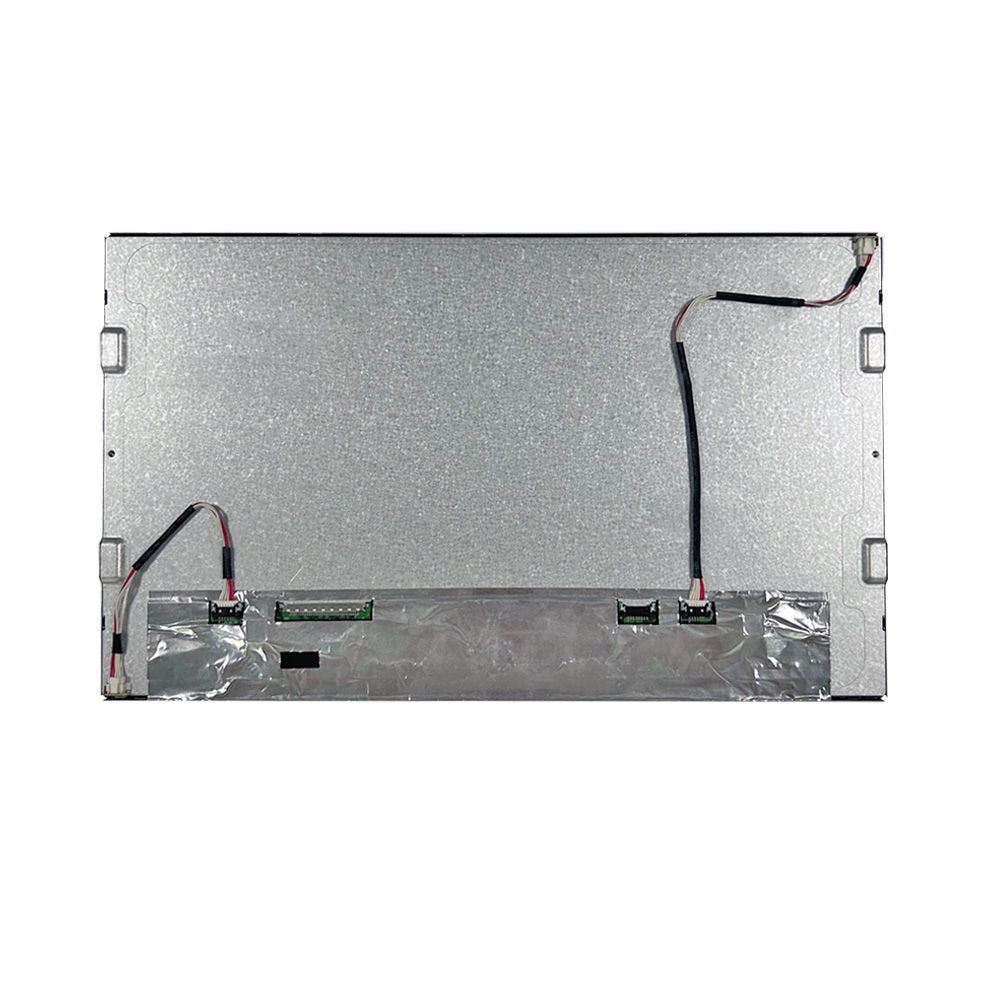

15.6 Inch High Brightness Outdoor LCD Display

Key Takeaways

The 15.6 inch high brightness outdoor LCD display is designed for industrial and outdoor environments requiring reliable visibility under direct sunlight. With 1920×1080 Full HD resolution, 1000 nits brightness, and a wide operating temperature range from –40°C to +85°C, this display module ensures stable performance in harsh conditions.

This outdoor LCD module is ideal for digital signage, EV charging stations, transportation displays, outdoor kiosks, and smart city systems where durability and visibility are critical.

Product Overview

Outdoor display systems must operate reliably in harsh environments including strong sunlight, temperature fluctuations, and continuous operation conditions. The 15.6 inch outdoor LCD display module is designed specifically to meet these challenges by integrating high brightness LED backlight technology with industrial-grade panel reliability.

With a Full HD resolution of 1920×1080, the display delivers sharp and detailed images suitable for digital signage, monitoring systems, and embedded interfaces. The IPS display technology ensures wide viewing angles and consistent color reproduction, enabling multiple users to view the screen clearly from different directions.

A key advantage of this module is its 1000 cd/m² brightness, which ensures excellent readability in outdoor environments where standard LCD screens may become difficult to see. Combined with its robust mechanical structure and stable signal transmission through the LVDS interface, the module offers reliable integration into industrial equipment and outdoor systems.

This outdoor LCD module is widely used in applications including smart city infrastructure, transportation systems, EV charging stations, industrial control terminals, and outdoor advertising displays.

Key Features

Sunlight Readable High Brightness

The display provides 1000 nits brightness, ensuring clear readability even in strong sunlight conditions.

Wide Temperature Industrial Design

With an operating temperature range from –40°C to +85°C, the module maintains stable performance in extreme environments.

Full HD Resolution

The 1920×1080 resolution delivers clear graphics and high-quality visual performance for both multimedia and industrial interfaces.

Wide Viewing Angle IPS Panel

The IPS panel technology provides 85° viewing angles in all directions, ensuring consistent display performance from multiple perspectives.

Long Lifetime Backlight

Energy-efficient LED backlight technology supports long operational life, making the display suitable for systems that require continuous operation.

Technical Specifications

Applications

Outdoor Digital Signage

High brightness outdoor LCD displays are commonly used in advertising screens installed in public areas where sunlight visibility is essential.

Transportation Information Displays

Bus stations, railway platforms, and airports often use outdoor LCD displays to present schedules and announcements.

Self Service Kiosks

Outdoor kiosks used for ticketing, information services, and payment systems rely on sunlight readable displays for effective user interaction.

Industrial Control Systems

Industrial monitoring equipment requires stable displays that can operate continuously in demanding environments.

Outdoor LCD Technology Explained

Outdoor LCD displays differ significantly from standard indoor LCD panels. They are designed to overcome environmental challenges such as sunlight glare, temperature fluctuations, and continuous operation requirements.

High brightness LED backlight systems enable outdoor displays to maintain visibility in strong ambient light conditions. Additionally, advanced panel technologies improve contrast and color stability, ensuring clear images even when viewed from different angles.

Industrial outdoor LCD modules also incorporate thermal management solutions that help maintain stable operation across a wide temperature range. These design improvements make them suitable for long-term use in public environments where reliability is essential.

Why Choose Duobond Outdoor LCD Displays

Duobond Display provides high-quality display solutions designed for industrial and commercial applications. Our outdoor LCD modules combine advanced display technology with durable engineering to deliver reliable performance in demanding environments.

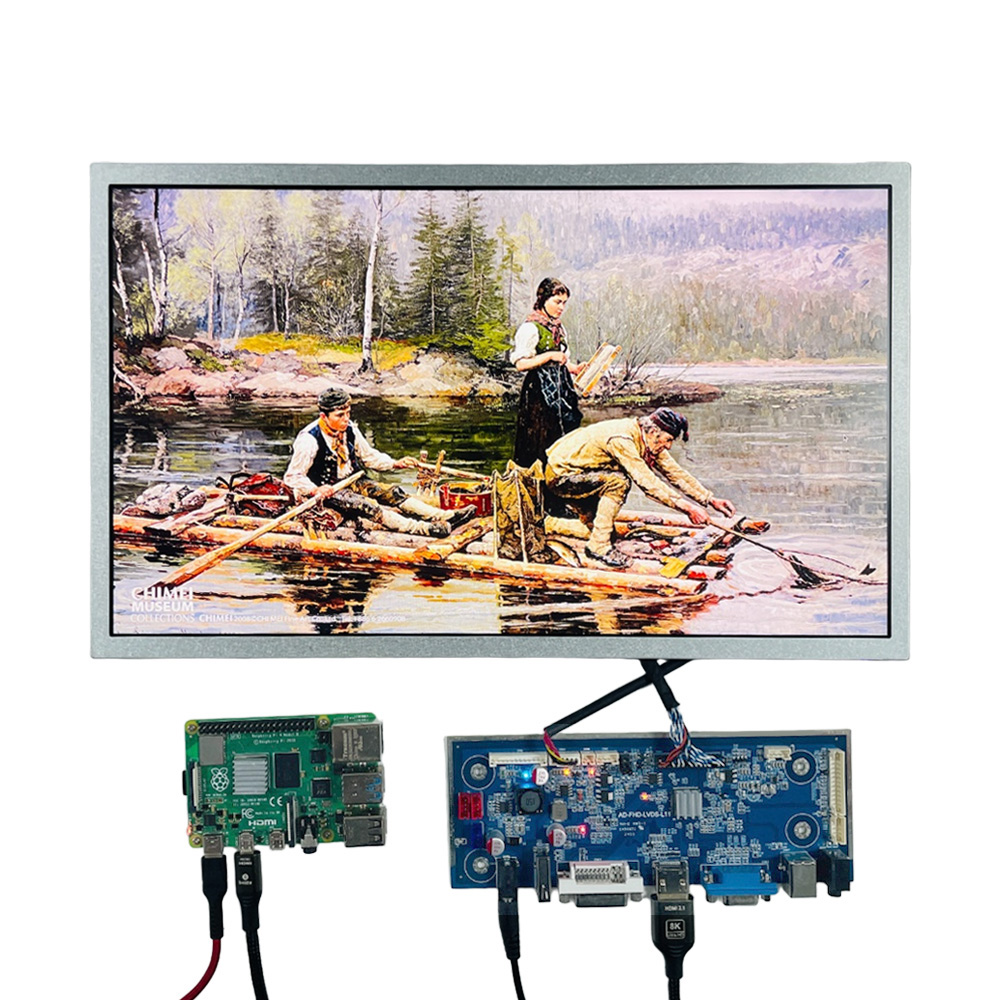

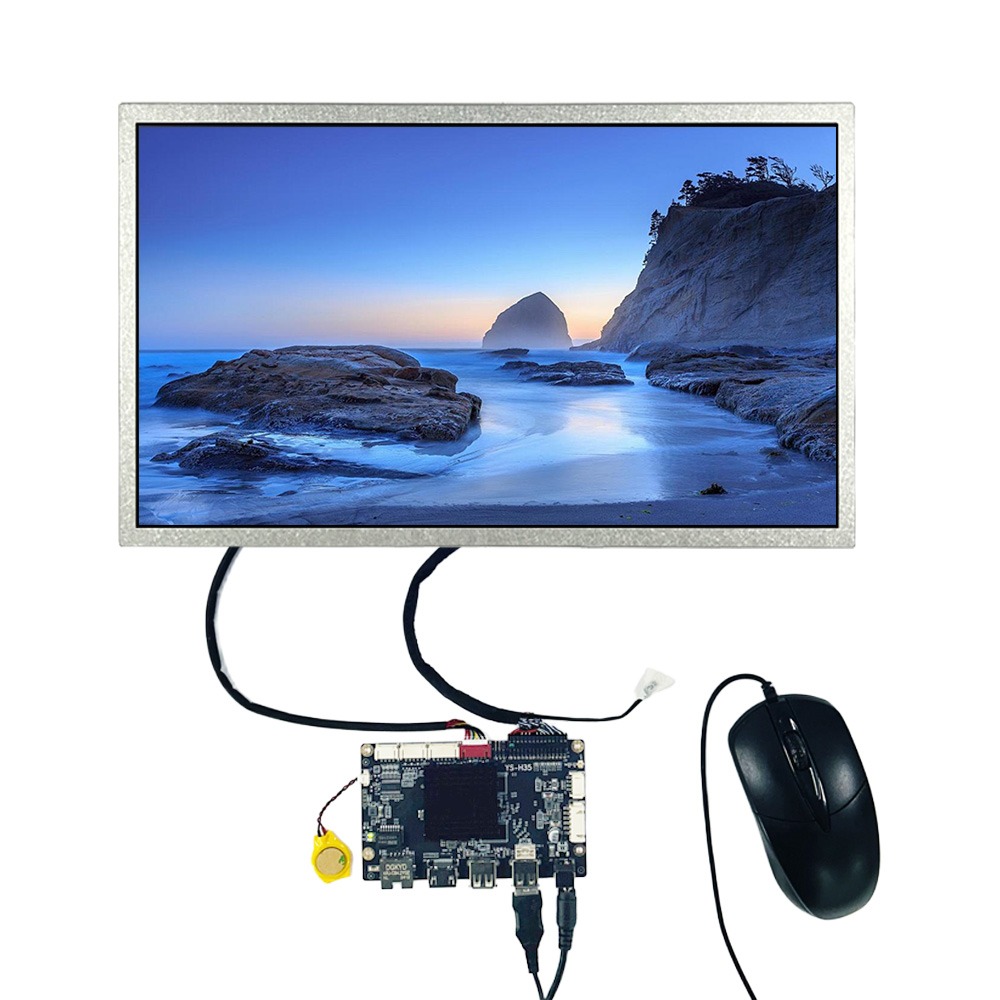

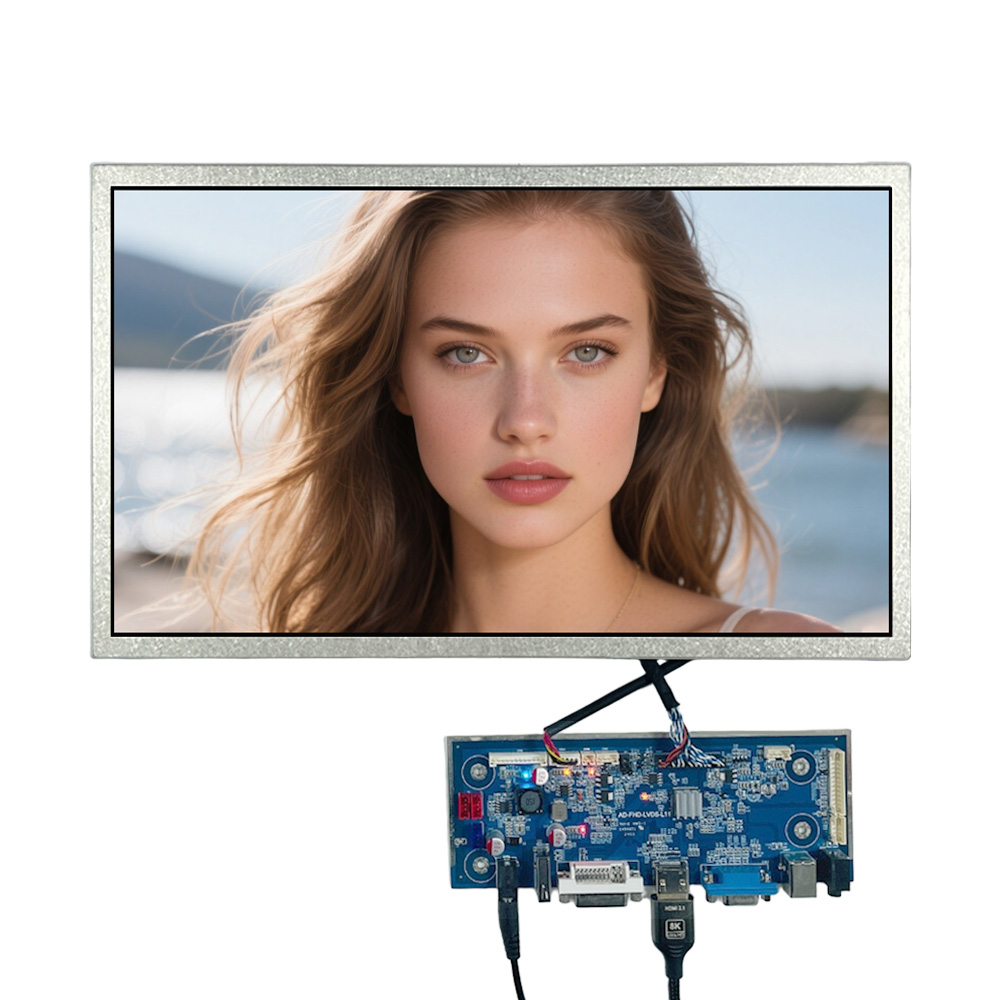

We support customers with flexible customization options including touch integration, driver boards, and mechanical design support. This allows system integrators and OEM manufacturers to develop complete display solutions tailored to their specific product requirements.

With extensive experience in display technology and manufacturing, Duobond Display helps customers create reliable products for applications such as digital signage, transportation systems, smart city infrastructure, and industrial automation.

FAQ

What is a sunlight readable LCD display?

A sunlight readable LCD display uses high brightness LED backlighting to maintain clear visibility under direct sunlight.

Can this display operate in extreme temperatures?

Yes. The display supports a wide operating temperature range from –40°C to +85°C, making it suitable for harsh outdoor environments.

What interface does this LCD module support?

The module uses a 30-pin LVDS interface which is widely used in industrial embedded systems and display controllers.
