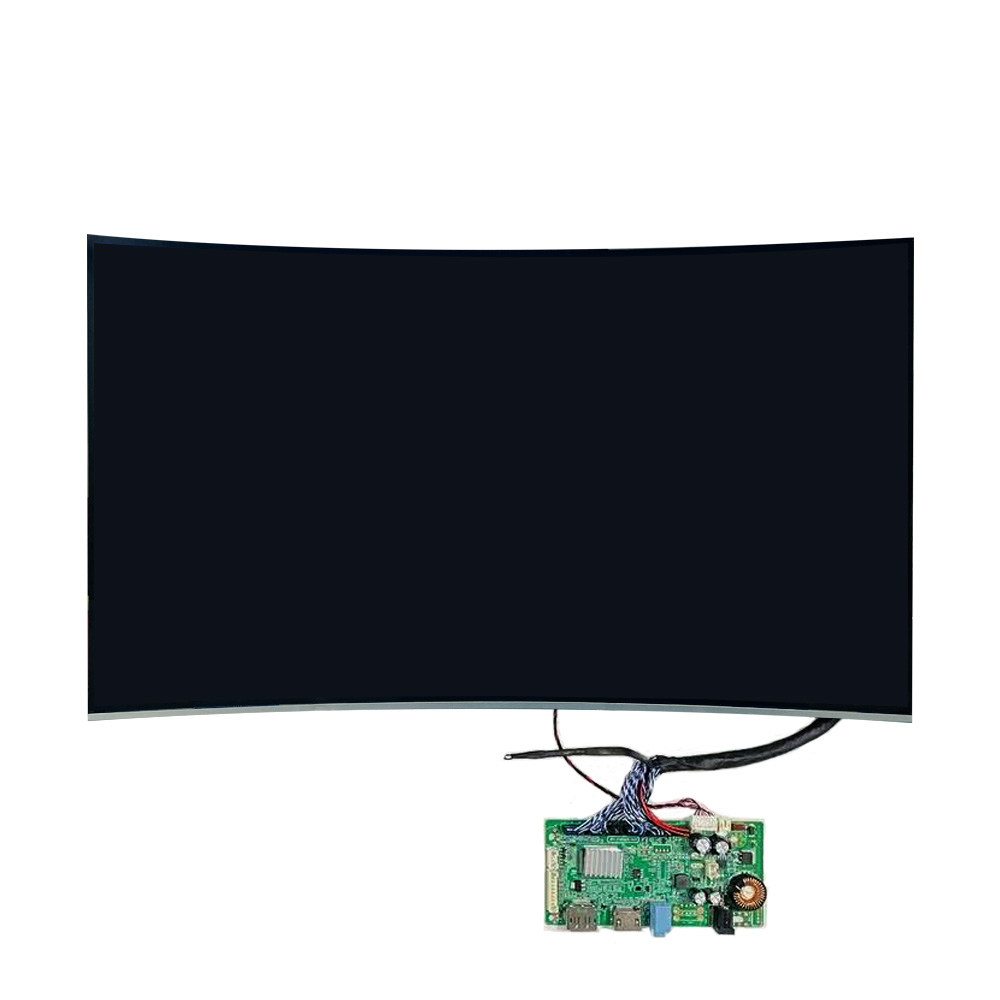

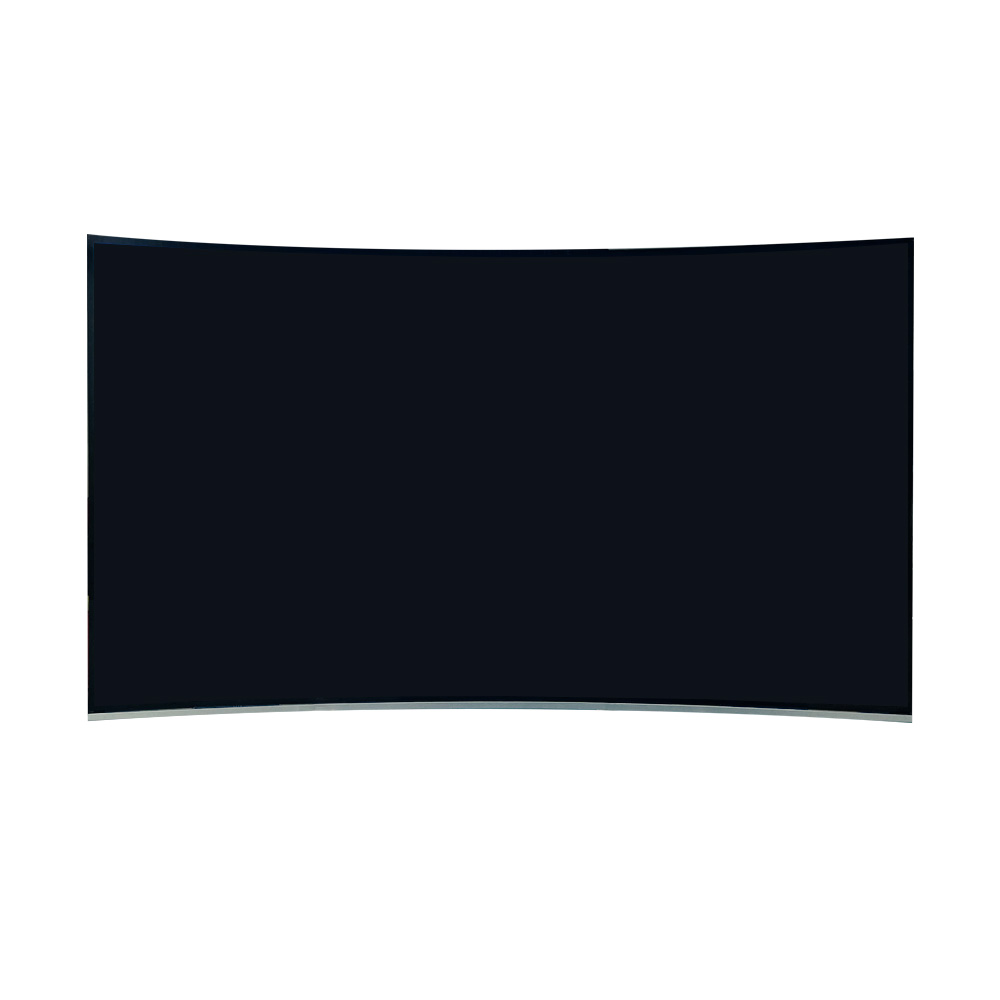

32-Inch 1920×1080 C-Shape Curved LCD Module (51-Pin LVDS)

As modern visual systems evolve toward immersive and ergonomic designs, curved LCD modules are becoming a crucial component in industrial, commercial, and entertainment display applications. The 32-inch 1920×1080 C-Shape Curved LCD Module offers outstanding visual performance, stable electrical characteristics, and reliable durability, making it suitable for a wide range of environments where precision and comfort are equally essential.

Product Overview

This 32-inch C-shaped TFT-LCD module combines Full HD resolution with an R1500 curvature, delivering a natural viewing experience that reduces eye fatigue and improves depth perception. It adopts dual-channel LVDS interface (51-pin) and supports 16.7 million colors, ensuring consistent and vivid color reproduction across the screen.
With its anti-glare coating, 3H surface hardness, and wide viewing performance, the module maintains exceptional clarity under both bright and dim conditions.

Its robust structure and operating temperature range from 0°C to +50°C make it ideal for continuous operation in industrial and commercial systems. Built with RoHS-compliant materials, it meets modern environmental and safety standards.

Technical Specifications

Optical and Mechanical Performance

The module provides uniform brightness with a center luminance of 500 nits and excellent uniformity above 75%.
The anti-glare surface ensures reduced reflection, while the R1500 curvature delivers a balanced immersive experience for both short- and mid-distance viewing setups. With its high transmittance panel and ADSDS technology, users can enjoy consistent contrast and accurate color even when viewed from wide angles.

The response time of 14 ms minimizes motion blur in dynamic applications such as monitoring, gaming dashboards, or multimedia control panels. The 1500:1 contrast ratio enhances depth and visual detail, ensuring sharp image rendering across dark and bright scenes.

Electrical and Reliability Features

The 32-inch curved LCD module is engineered to maintain stable operation under varying voltage and temperature conditions.
It supports a wide frame rate range (48–240 Hz), offering flexibility for different display controller designs. The power supply voltage is set at 12 V with ripple control within 1.2 Vp-p, and the rush current is kept below 5 A, ensuring smooth startup and safe integration into complex systems.

To guarantee long-term durability, the backlight unit is designed for 30,000 hours of operation, supporting extended product lifecycles in environments where replacement or downtime can be costly.
Reliability tests include thermal shock, vibration, high-humidity, and on/off cycling tests, all confirming that the module performs consistently under industrial operating conditions.

Design and Structure

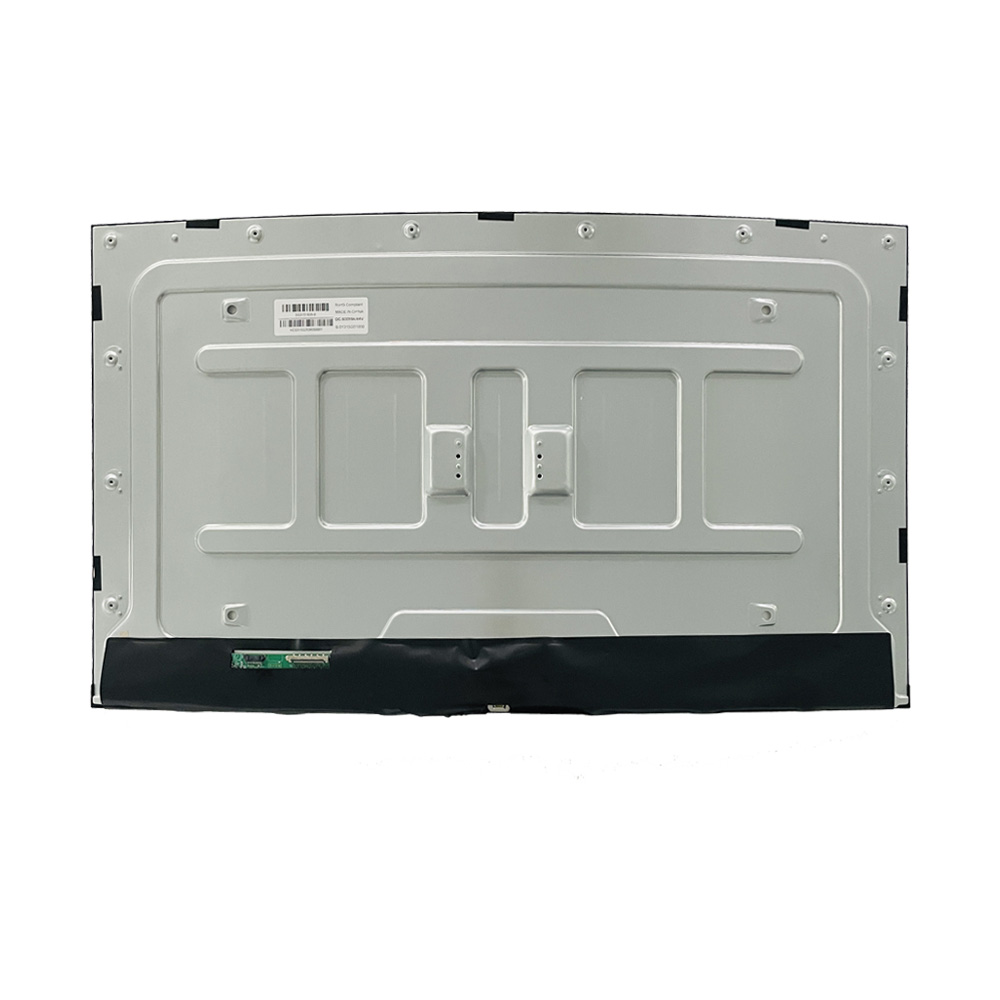

The physical dimensions of 725.2 × 422.7 mm allow the module to fit seamlessly into enclosure systems designed for standard 32-inch curved displays. The slim form factor makes it adaptable for both built-in and standalone installations.
Its dual-side LED light bars provide stable, evenly distributed backlighting, while the 6-pin connector per light bar ensures reliable electrical contact and simplified assembly.

The C-shaped curvature (R1500) optimizes user immersion by keeping all points of the screen at a consistent distance from the viewer’s eyes — a key advantage for applications such as simulation dashboards, digital signage, and control interfaces where both ergonomics and focus stability matter.

Application Scenarios

The 32-inch 1920×1080 C-shape LCD module is suitable for multiple high-performance and visually demanding applications, particularly where curved form factors enhance visibility and comfort:

• Industrial Control Panels – Provides wide viewing angles and stable image performance in control rooms or factory automation systems.

• Professional Display Equipment – Used in broadcasting, monitoring, and visualization systems requiring accurate image rendering.

• Retail and Digital Signage – Ideal for dynamic advertising displays and curved wall setups.

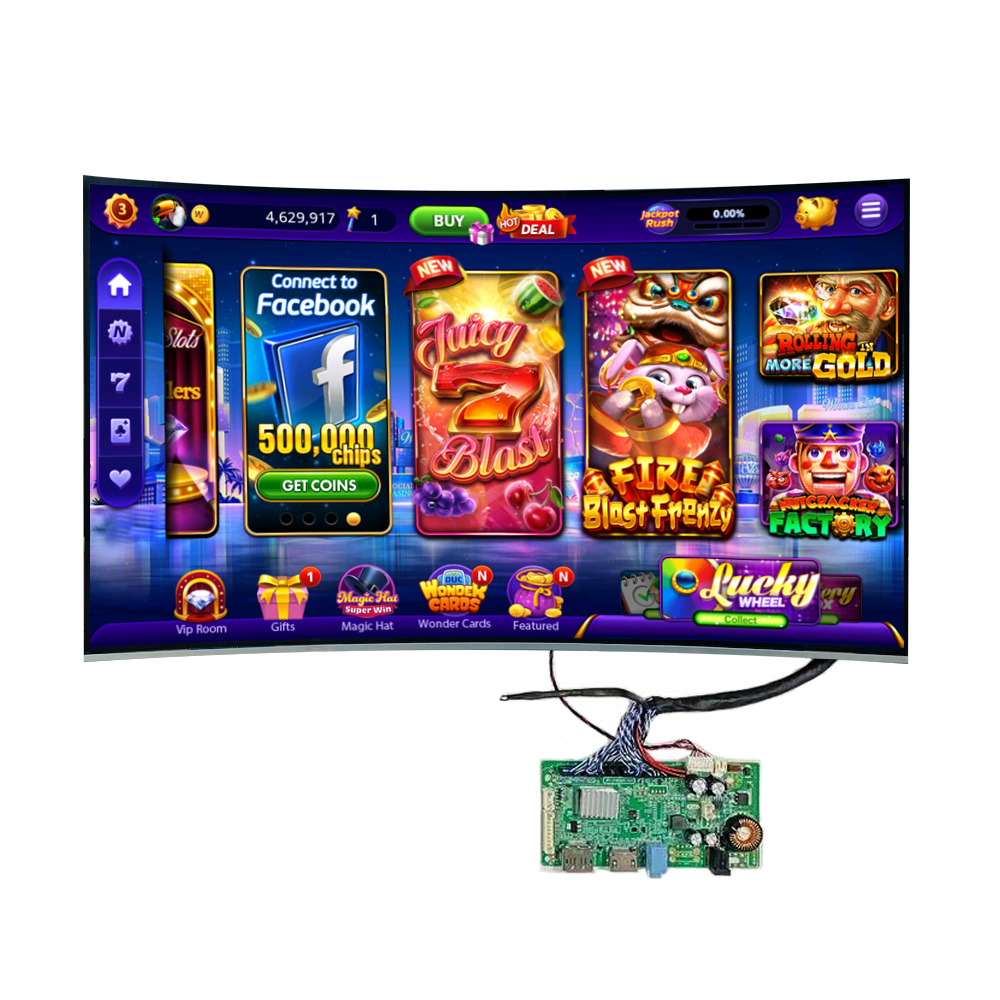

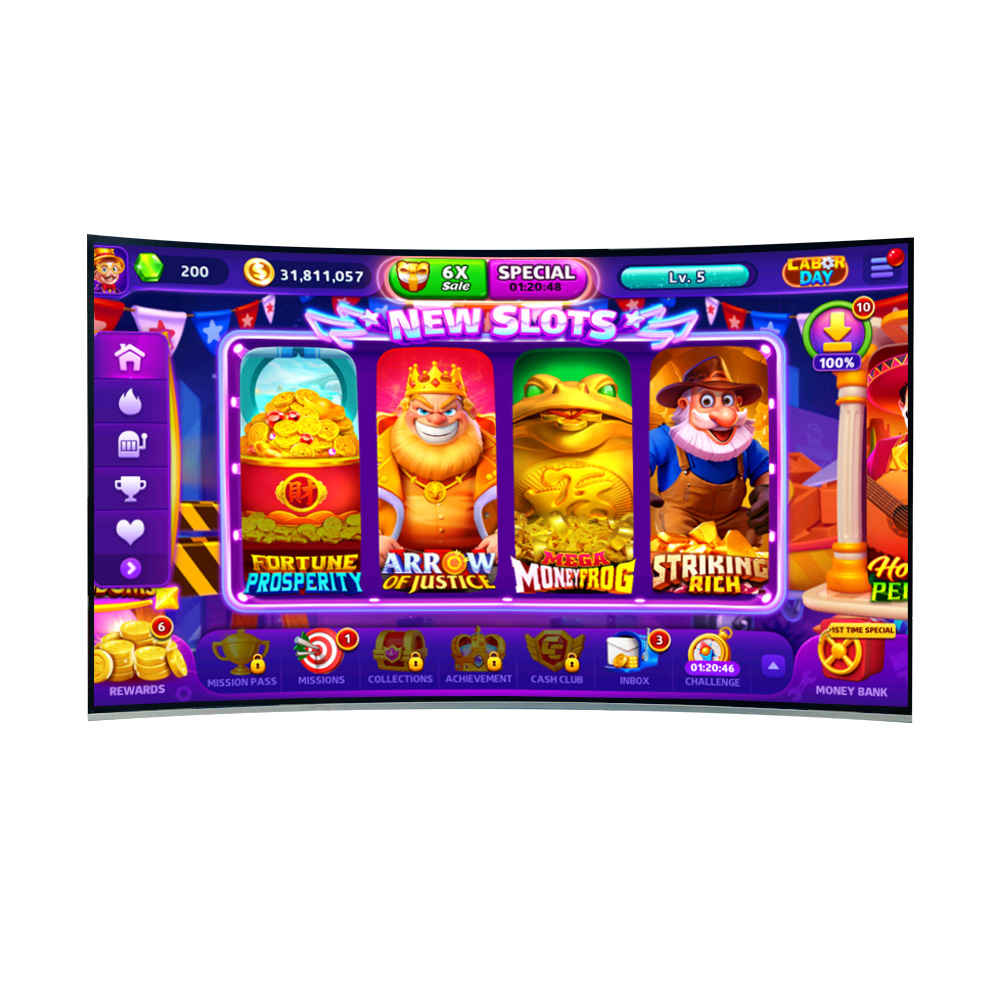

• Gaming Consoles and Simulators – The curved surface increases immersion, reducing peripheral distortion during motion visualization.

Each of these applications benefits from the high brightness, anti-glare finish, and full viewing stability that characterize this model.

Quality Assurance and Testing

Every module undergoes strict outgoing inspection, including optical, mechanical, and electrical evaluations.
Testing follows international standards to ensure zero critical defects such as scratches, pixel anomalies, or connection instability. Environmental and reliability evaluations — such as thermal cycling (−10°C to +55°C), high-humidity endurance (80% RH), and vibration resistance — further confirm that each display meets long-term usage requirements.

Modules are packaged under controlled temperature and humidity conditions (18°C–24°C, 50–70% RH) to prevent electrostatic damage or moisture absorption during storage and shipment.

Environmental Compliance

The product fully meets RoHS and environmental material control standards, ensuring compliance with global regulations for hazardous substances.
No lead, mercury, or halogen materials are used in the backlight or electronic circuits, reflecting Aptus Display’s commitment to sustainable and responsible manufacturing.

Contact & Customization

APTUS Display offers customization and technical support for integration into various systems.
Whether you require specific connector types, touch functionality, or different curvature options, our engineering team can tailor the design to meet your project’s needs.

For inquiries about this 32-inch 1920×1080 C-Shape LVDS Curved LCD Module, please contact our sales team at:

Conclusion

The 32-inch C-Shape 51-Pin LVDS Curved LCD Module represents the next step in industrial-grade visual design — combining Full HD clarity, ergonomic curvature, and proven reliability.
With its strong optical characteristics, wide temperature endurance, and compliance with international standards, it delivers both performance and durability across a wide range of professional applications.
