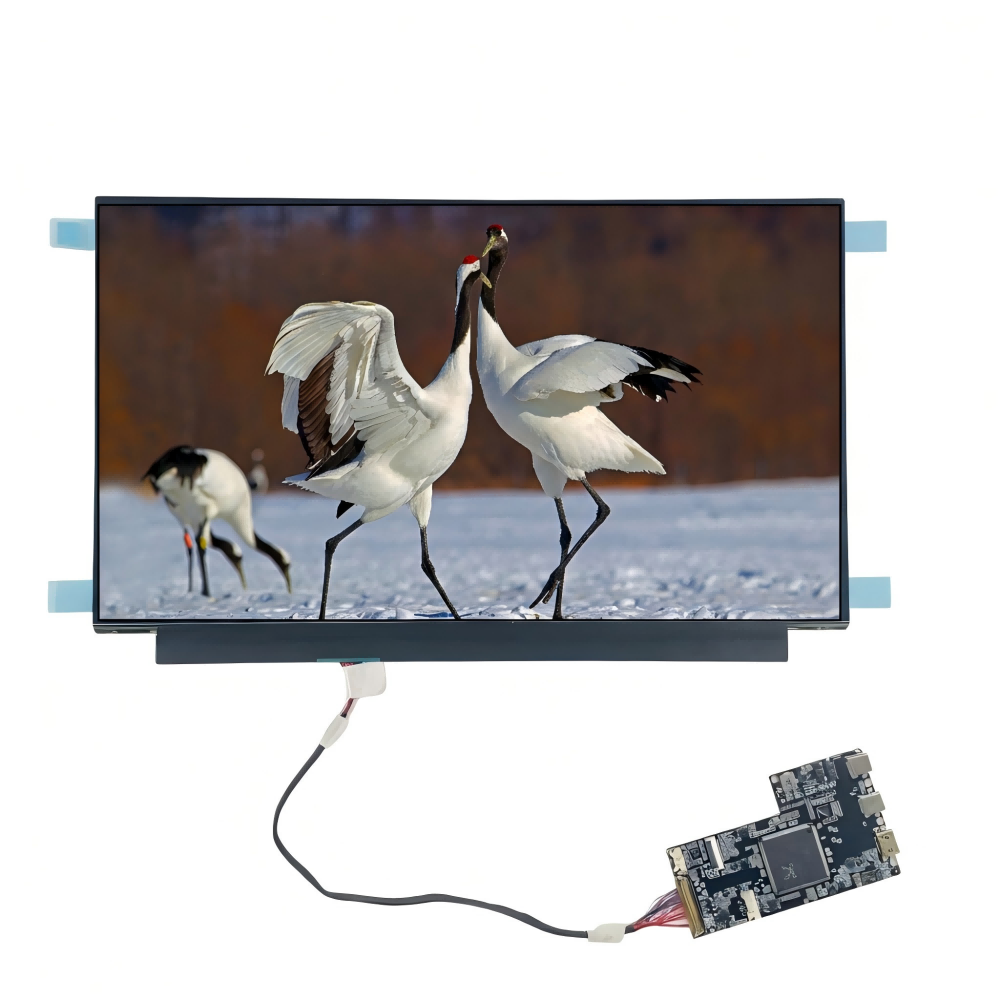

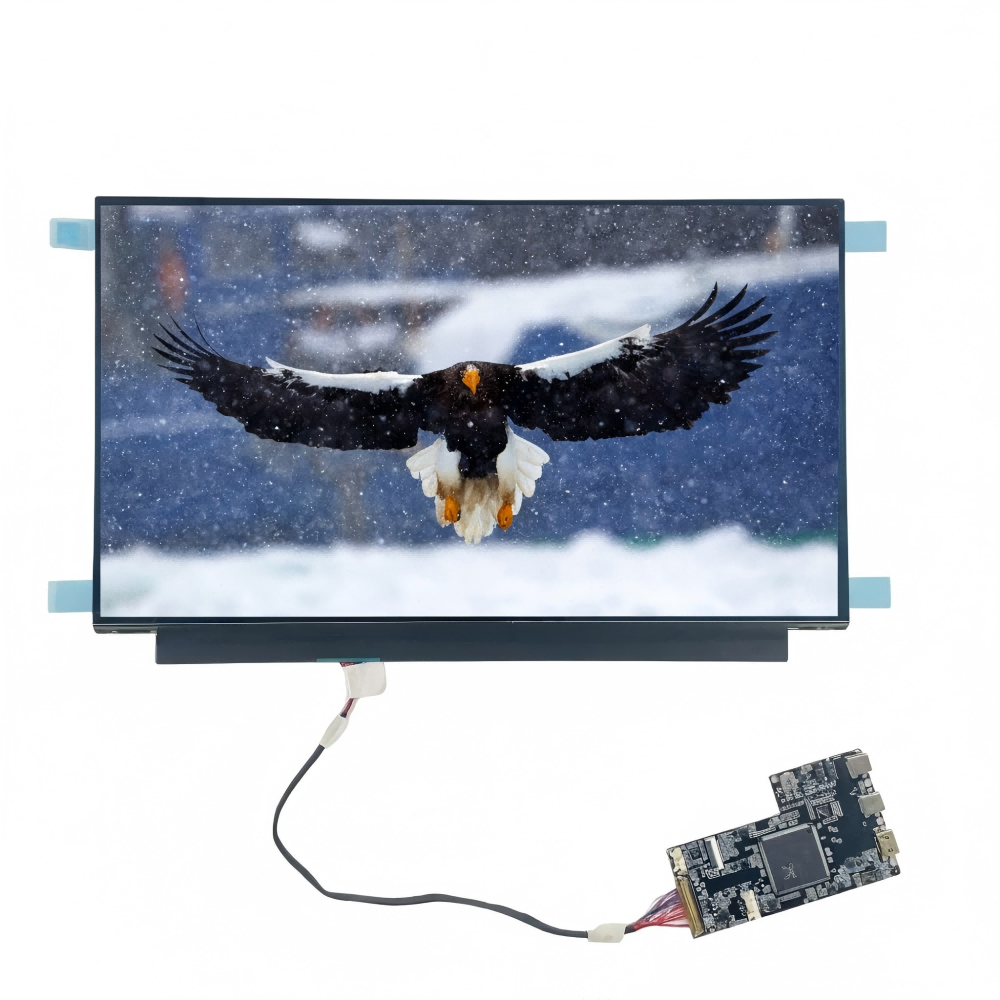

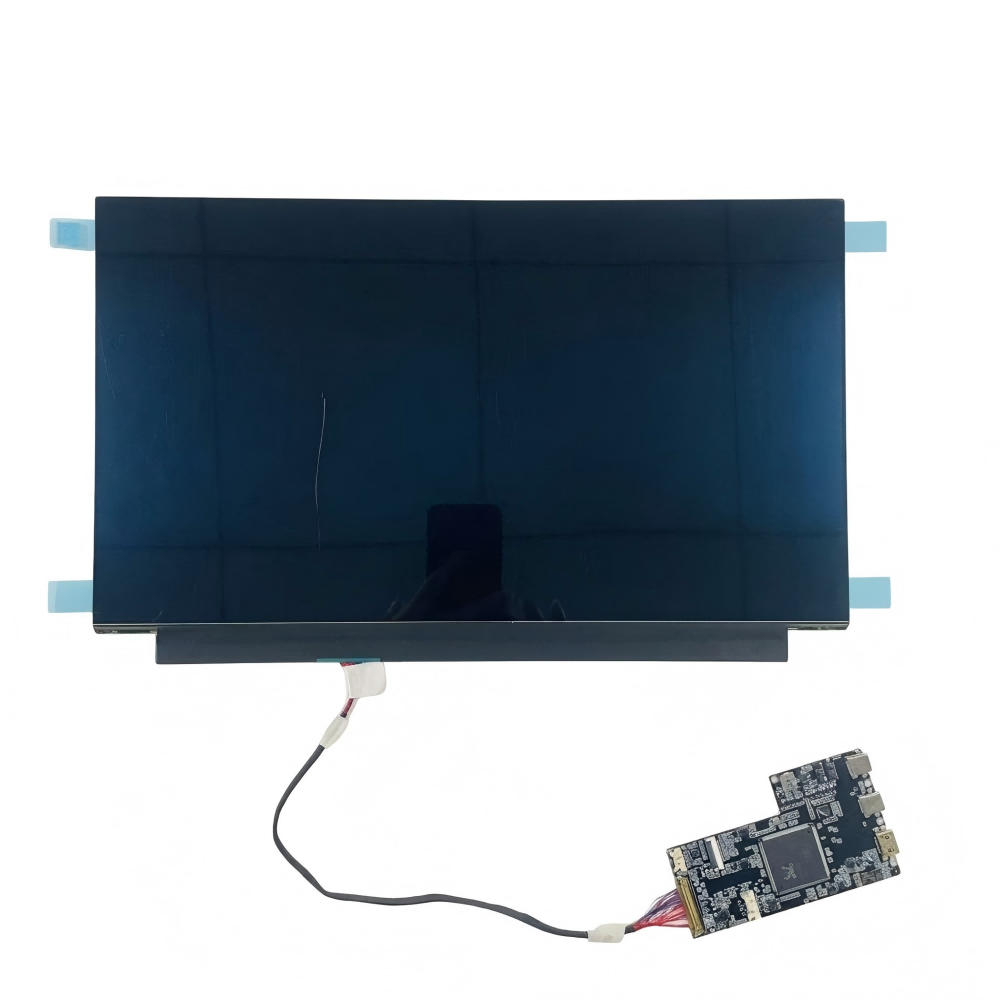

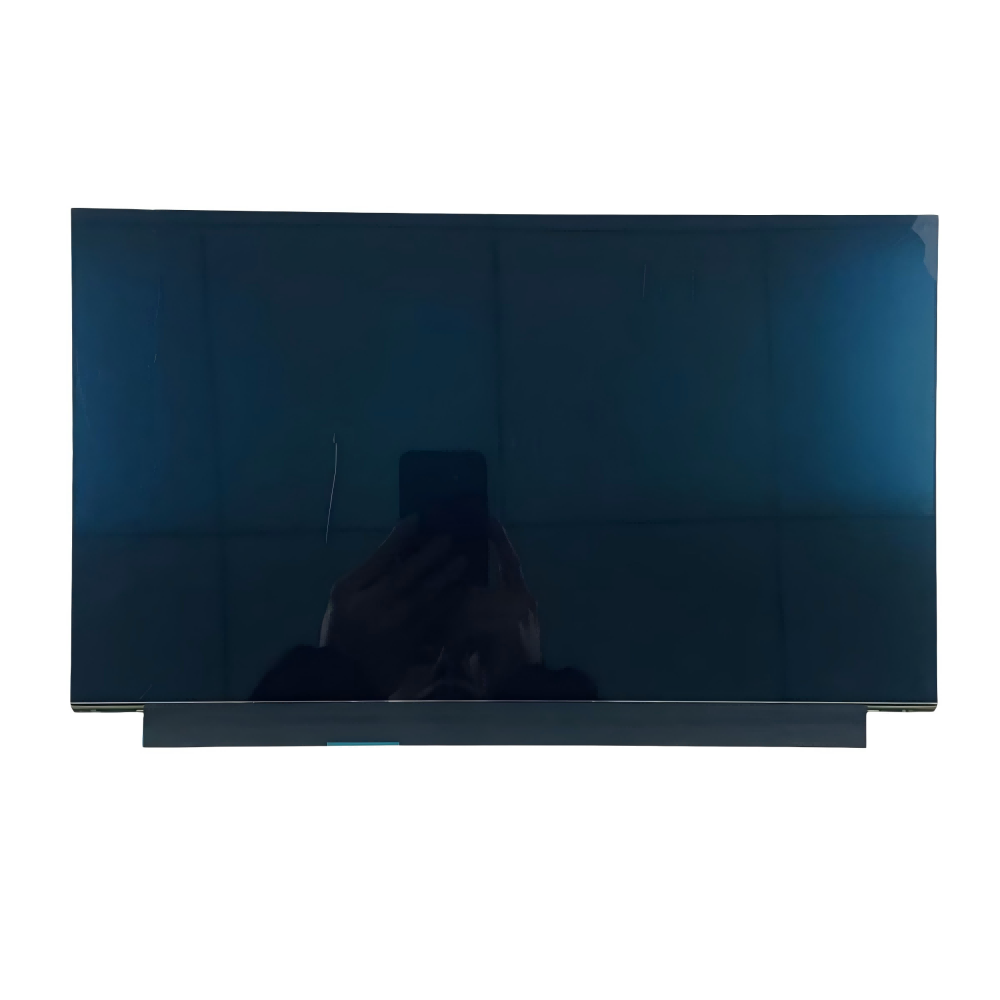

15.6" 1920x1080 FHD OLED Display Module Overview

The ATNA56YX03-0 is a 15.6-inch FHD OLED display module designed for premium notebook PCs and tablet devices. With a 1920×1080 resolution it delivers sharp image quality, precise text rendering, and immersive visuals. The module supports 1074M colors (RGB 8bit + 2FRC) for accurate color reproduction, making it suitable for professional and consumer-grade computing devices.

Built on LTPS TFT active matrix OLED technology, each pixel is self-emissive, providing true black levels, high contrast ratio, and fast response time. The module uses the eDP v1.4b interface, ensuring high-speed data transmission and compatibility with modern notebook and tablet architectures.

This OLED display module is ideal for applications requiring high visual fidelity, including notebooks, tablet PCs, and other portable computing devices.

Key Specifications

Optical Performance

This 15.6" OLED display delivers:

• High contrast ratio (100,000:1) for deep blacks and vivid colors

• 1 ms response time for smooth video and dynamic content

• Wide DCI-P3 color gamut for accurate and vibrant color reproduction

• High brightness uniformity (85%) for consistent image quality across the screen

The self-emissive OLED technology ensures true blacks and excellent contrast without the need for a backlight.

Electrical and Interface Specifications

The module operates with:

• Logic voltage: 3.3V (VDD)

• Panel voltage (VBAT): 8V–21V

• Signal input voltage: 0–VDD_1.8V

• eDP interface: v1.4b, 2.7 Gbps typical

Proper power-on/off sequencing is required to maintain long-term reliability. The eDP interface ensures stable data transmission and is compatible with modern notebook and tablet systems.

Mechanical Design and Reliability

The module features a slim profile (1.627 mm thickness) and lightweight design (195 g). It is designed for robust integration into notebooks and tablet devices while maintaining high display quality. The module has passed multiple reliability tests including:

• High Temperature Operating Life (HTOL) 70°C, 240 hrs

• Low Temperature Operating Life (LTOL) -20°C, 240 hrs

• Thermal Humidity Bias (THB) 60°C / 93%, 240 hrs

• Vibration and ESD testing

• Image sticking test: ΔL < 3.5%

These tests ensure consistent performance in a variety of environmental conditions.

Applications

• Notebook PC

• Tablet PC

• Portable workstations

• Other high-resolution computing devices

For non-standard applications, system-level verification is recommended.

About Duobond Display (Rich Version)

Duobond Display is a global supplier of advanced OLED and LCD display solutions serving industrial, commercial, and embedded markets. With over a decade of experience in display technology, Duobond Display specializes in providing professional-grade modules for high-performance computing devices, industrial terminals, and specialized portable electronics.

Our team works closely with OEMs, system integrators, and solution providers to ensure that display modules meet project-specific requirements. From initial product selection, interface compatibility evaluation, and mechanical integration guidance, to long-term supply planning, Duobond Display is committed to delivering reliable, consistent, and technically supported solutions.

The company’s product portfolio includes TFT LCDs, monochrome displays, bar-type displays, and high-resolution OLED modules. We combine technical expertise with strict quality control to ensure each display module meets international standards for performance, reliability, and environmental compliance. Our solutions help customers accelerate development cycles, minimize integration risks, and maintain long-term operational stability.

Our Services (Rich Version)

• Module Sourcing & Evaluation: Assist in selecting the right OLED/LCD display for your application based on resolution, size, and performance.

• Technical Consultation: Provide guidance on interface compatibility, power design, signal integrity, and system integration.

• Mechanical & Integration Support: Offer design recommendations for housing, mounting, and thermal management.

• Quality Assurance & Reliability Testing: Conduct inspections and provide documentation to ensure compliance with industry standards.

• Long-Term Supply & Lifecycle Management: Support continuous supply planning, replacement parts, and consistent quality for ongoing projects.

• Project-Level Support: Collaborate with engineering teams to resolve integration challenges, optimize visual performance, and ensure system stability.

Contact for Technical Inquiry

For technical questions, system integration support, or project evaluation, you can contact our team at any time. Our engineers provide guidance on interface compatibility, power requirements, mechanical integration, and environmental considerations.

Sharing your project details allows us to provide accurate technical documentation, integration advice, and solution recommendations tailored to your application.

Contact us to request technical documents, discuss project requirements, or evaluate display solutions.

Frequently Asked Questions (FAQ)

Q1: What interface does this module use?
A: eDP v1.4b, 2.7 Gbps, 60 Hz refresh rate.

Q2: Is it suitable for notebooks and tablets?
A: Yes, designed for notebook PCs and tablet devices with high visual fidelity.

Q3: What are the benefits of OLED over LCD?
A: Self-emissive pixels, true blacks, high contrast, fast response, wide viewing angles.

Q4: What is the operating temperature range?
A: -20°C to +70°C; storage: -40°C to +85°C.

Q5: How can I request technical documents or support?
A: Contact our team with your project details for evaluation and technical guidance.
