High-Temperature 5-Wire Resistive Touch Panel

Resistive Touch Solution with Stylus Precision for Harsh Commercial – Duobond Display Total Solutions

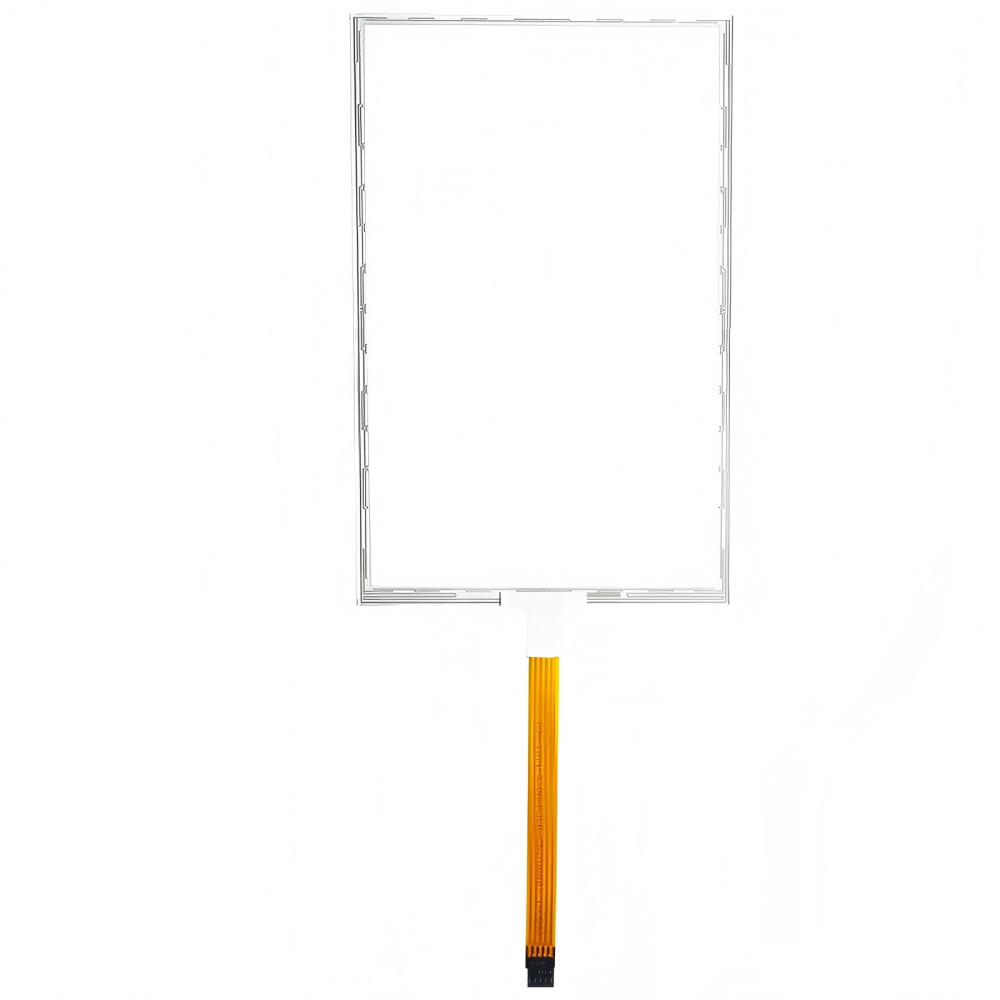

Duobond Display proudly offers the High-Temperature 5-Wire Resistive Touch Panel, a rugged resistive touch screen engineered for professional commercial display applications that demand precise stylus-based operation. As a key component of our Total Solutions ecosystem — integrating LCD panels, resistive touch panels, OCA/LOCA optical bonding, and driver boards — this panel provides exceptional durability, accurate single-point touch response, and long-term reliability in demanding environments where stylus input is essential for precision and control.

Manufactured with advanced high-temperature sintering technology, the silver paste circuits are permanently fused to the glass substrate at temperatures exceeding 500°C. This creates an ultra-strong bond that resists scraping, thermal shock, moisture, and mechanical wear — making the panel ideal for industrial HMI systems, medical equipment interfaces, financial terminals, and retail POS applications that require stylus-driven interaction and must withstand extreme conditions.

Whether you need a standard rectangular panel or a custom-shaped design, this 5-wire resistive touch panel integrates seamlessly with Duobond’s LCD modules and driver solutions (such as the AD-FHD-LVDS-L11) to deliver complete, high-reliability display systems that operate flawlessly 24/7.

Why 5-Wire Resistive Touch Technology with Stylus Operation Is the Right Choice

Resistive touch panels excel in professional settings because they rely on pressure-based activation, making them perfectly suited for stylus use. This allows for precise, single-point input without the risk of accidental multi-touch activation common in capacitive screens. The 5-wire design offers superior linearity and longevity compared to standard 4-wire versions, ensuring consistent accuracy even after millions of stylus contacts.

The high-temperature version elevates performance further through its proprietary sintering process, delivering unmatched resistance to environmental stress — exactly what industrial and commercial projects need when stylus precision and durability are non-negotiable.

Key Features and Benefits

• Extreme Environmental Tolerance: Operating temperature range of -30°C to +80°C and storage range of -40°C to +85°C — built to handle hot production floors, cold storage areas, or medical environments with temperature fluctuations.
• High Humidity Resistance: 20% to 90% RH operating humidity ensures stable stylus performance even in humid or condensing conditions.
• Extended Lifespan: More than 35 million single-point stylus touches, dramatically reducing maintenance and replacement costs in high-usage installations.
• Precise Stylus Operation: Linearity accuracy ≤1.5% delivers reliable, accurate input for menu selection, data entry, and control functions when using a stylus.
• High Optical Clarity: Light transmittance ≥80%, with optional matte or glossy surface finish, anti-glare treatment, and AF (anti-fingerprint) coating for clear visibility under bright lighting.
• Flexible Construction: Available in ITO Film + ITO Glass or full ITO Glass + ITO Glass structures to balance durability and optical performance.
• Wide Size Range: Supported from 4.3 inches to 23.8 inches, suitable for compact terminals through to larger control panels.
• Custom Design Support: Accepts irregular and custom shapes for specialized industrial enclosures or equipment-specific designs.
• Straightforward Integration: Fully compatible with Duobond driver boards for easy USB or standard interface connection, ensuring responsive stylus input.

These characteristics make this resistive touch panel the preferred choice for applications where stylus precision, environmental resilience, and long service life are critical.

Detailed Technical Specifications

Structure

• ITO Film + ITO Glass
• ITO Glass + ITO Glass (for maximum durability)

Active Area Sizes

• 4.3” to 23.8” (custom sizes and shapes available upon request)

Target Applications

• Industrial control (HMI)
• Medical equipment interfaces
• Financial and banking terminals
• Retail POS systems

Optical Performance

• Light Transmittance: ≥80%
• Surface Treatment: Matte or glossy optional, anti-glare, sunlight readable (AF coating available)

Touch Performance

• Linearity Accuracy: ≤1.5%
• Touch Lifespan: >35,000,000 single-point stylus touches

Environmental Ratings

• Operating Temperature: -30°C to +80°C
• Storage Temperature: -40°C to +85°C
• Operating Humidity: 20% RH – 90% RH (non-condensing)

Manufacturing Process

• High-temperature silver paste sintering (>500°C) for unbreakable circuit adhesion

Surface Options

• Anti-glare treatment for high ambient light environments
• Anti-fingerprint (AF) coating for cleaner, professional operation

Seamless Integration with Duobond Total Solutions

Combine this high-temperature 5-wire resistive touch panel with Duobond’s commercial-grade LCD panels, professional OCA/LOCA optical bonding, and reliable driver boards to create a fully integrated system. Optical bonding eliminates air gaps, significantly improves contrast and brightness, and adds extra protection against dust, moisture, and impact — essential for industrial and medical settings.

Our driver solutions provide stable signal handling and precise stylus response, delivering consistent performance under continuous operation. The complete Duobond Total Solutions package simplifies your supply chain and guarantees full compatibility from prototype to production.

Ideal Applications for High-Temperature 5-Wire Resistive Touch Panels

This resistive touch panel is specifically engineered for professional environments where stylus-based precision and durability are required:

• Industrial Control Panels & HMI: Factory automation systems, machine interfaces, and process control displays that rely on stylus input for accurate parameter adjustment in dusty, humid, or high-temperature production environments.
• Medical Equipment Interfaces: Diagnostic devices, patient monitors, and hospital terminals that demand stylus or gloved-finger operation, frequent cleaning, and reliable performance in controlled medical settings.
• Financial and Banking Terminals: Secure payment stations, self-service kiosks, and ATM-style machines that use stylus input for signatures, data entry, and high-reliability transactions.
• Retail POS Systems: Rugged point-of-sale terminals, checkout counters, and inventory management displays in busy retail or food-service environments where stylus precision ensures error-free operation.

In each of these applications, the 5-wire resistive design delivers the stylus-driven accuracy and environmental toughness that professional users require.

Advantages Over Standard Touch Solutions

Compared with ordinary 4-wire resistive panels, the 5-wire high-temperature version provides better linearity, longer stylus lifespan, and superior resistance to thermal cycling and humidity. When paired with Duobond optical bonding, the complete assembly gains enhanced mechanical strength and environmental protection, making it far more suitable for industrial and medical use than consumer-grade alternatives that lack stylus precision.

Customers enjoy lower total cost of ownership, fewer service calls, and faster project deployment thanks to Duobond’s one-stop integration service.

Quality Assurance and Installation Guidelines

Every panel undergoes strict testing for stylus accuracy, environmental endurance, optical clarity, and circuit integrity before shipment. We recommend professional integration with Duobond driver boards and bonding services to achieve optimal results.

Installation Recommendations:

• Confirm voltage compatibility with your LCD panel and driver board before powering on.
• Follow standard anti-static procedures during handling and assembly.
• For custom shapes, provide detailed drawings early for accurate prototyping.
• When using OCA/LOCA bonding, follow recommended curing processes for best optical and mechanical performance.

Why Industry Professionals Choose Duobond Resistive Touch Panels

• Decades of expertise in commercial and industrial display integration
• True one-stop Total Solutions: LCD + Resistive Touch + Optical Bonding + Driver
• Expert technical support from design through mass production
• Competitive pricing backed by premium quality and reliability
• Custom engineering capabilities tailored to your exact project needs

Duobond Display – Total Solutions for Commercial Displays

LCD + Touch Panel + OCA/LOCA Bonding + Driver Solution

The High-Temperature 5-Wire Resistive Touch Panel is the dependable, stylus-optimized choice for builders of professional display systems that must deliver precise input and reliable performance in real-world industrial and commercial conditions.

Ready to enhance your next industrial HMI, medical device, financial terminal, or POS project? Contact the Duobond Display team today for samples, detailed drawings, or a full Total Solutions proposal. Let us help you build display systems that perform reliably for years to come.
