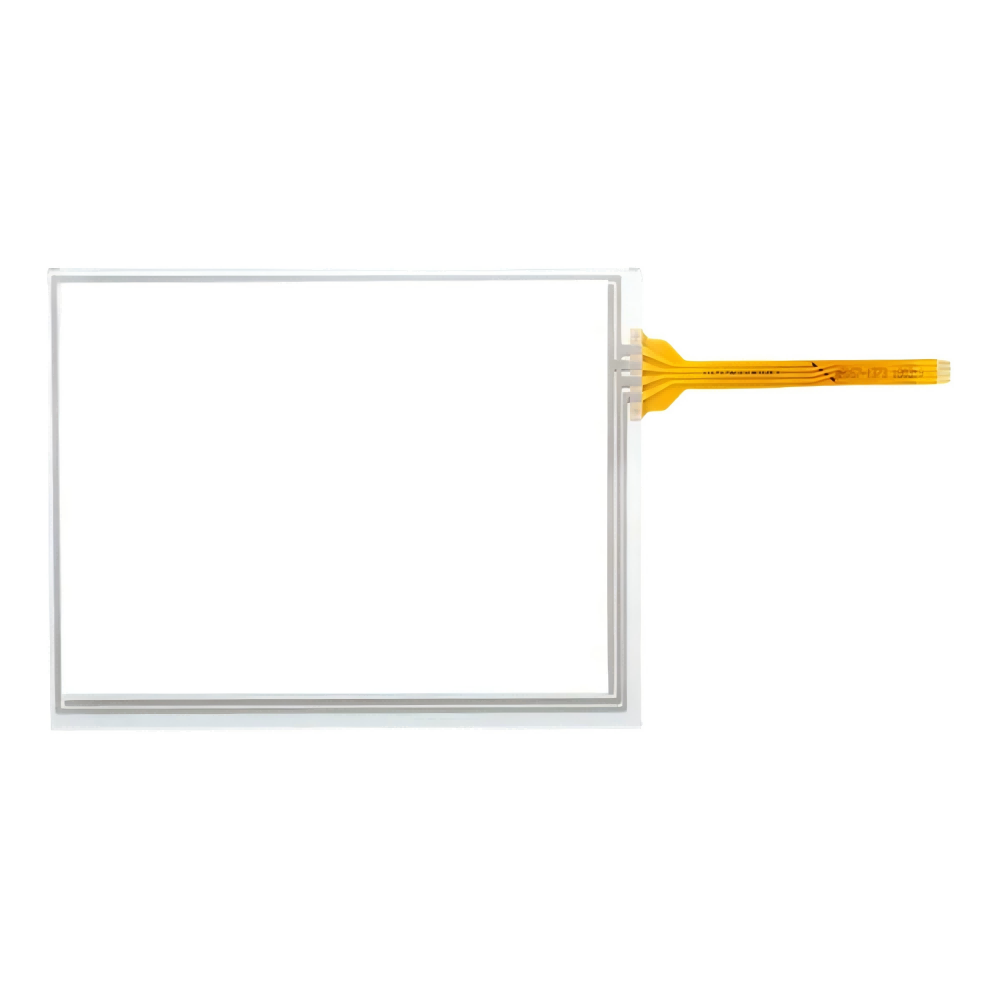

4-Wire Resistive Touch Panel Cost-Effective Precision Stylus Touch Solution for Professional Commercial Displays – Duobond Display Total Solutions

Duobond Display is pleased to present the 4-Wire Resistive Touch Panel, a trusted and economical resistive touch screen engineered specifically for professional commercial display applications that require accurate stylus input and dependable daily performance. As an essential part of our Total Solutions ecosystem — combining LCD panels, resistive touch panels, OCA/LOCA optical bonding, and driver boards — this 4-wire panel offers excellent value, precise single-point operation, and flexible configuration options that make it the smart choice for volume commercial projects.

Using high-quality ITO materials and standard resistive technology, the panel is available in three different structures to suit a wide range of commercial requirements. It delivers consistent stylus precision for menu navigation, data entry, and interactive functions while keeping costs competitive, allowing you to create reliable commercial displays without compromising quality.

Whether you need a standard size or a custom-shaped design, this 4-wire resistive touch panel integrates smoothly with Duobond’s LCD modules and driver solutions (including the AD-FHD-LVDS-L11) to deliver complete, ready-to-use display systems that perform reliably 24/7 in medical, financial, and retail environments.

Why the 4-Wire Resistive Touch Panel Is the Practical Commercial Choice

The 4-wire resistive design has long been favored in professional commercial displays for its straightforward pressure-based activation, which ensures accurate stylus or gloved-finger input with virtually no false touches. It strikes the perfect balance between performance and affordability, making it ideal for projects where budget control and reliable single-point precision are equally important. When combined with Duobond’s optical bonding and driver boards, it becomes a complete, high-value commercial touch solution.

Key Features and Benefits

• Proven Stylus Precision: Linearity accuracy ≤1.5% for accurate and consistent single-point input using a stylus or gloved finger.
• Three Structure Options: ITO Film + ITO Glass, ITO Glass + ITO Glass, or the triple-layer ITO Film + ITO Film + ITO Glass for added flexibility in durability and optical performance.
• Reliable Environmental Performance: Operating temperature -20°C to +70°C and storage -30°C to +80°C, suitable for typical commercial settings.
• Stable Humidity Resistance: 20% to 90% RH operating humidity for dependable operation in varied retail and public environments.
• Solid Touch Lifespan: More than 1.5 million single-point stylus touches and over 100,000 scribble touches, providing excellent value for everyday commercial use.
• High Optical Clarity: Light transmittance ≥80%, with optional matte or glossy surface finish, anti-glare treatment, and AF (anti-fingerprint) coating.
• Broad Size Range: Supported from 4.3 inches to 23.8 inches.
• Full Custom Support: Accepts irregular and custom shapes to fit unique commercial equipment or creative enclosure designs.
• Simple Integration: Direct compatibility with Duobond driver boards for easy USB or standard interface connection and responsive stylus performance.

These attributes make the 4-wire resistive touch panel the practical, budget-friendly option for commercial display builders who need professional stylus functionality without premium pricing.

Detailed Technical Specifications

Structure

• ITO Film + ITO Glass
• ITO Glass + ITO Glass
• ITO Film + ITO Film + ITO Glass (triple-layer option)

Active Area Sizes

• 4.3” to 23.8” (custom sizes and irregular shapes available)

Target Applications

• Medical equipment interfaces
• Financial and banking terminals
• Retail POS systems

Optical Performance

• Light Transmittance: ≥80%
• Surface Treatment: Matte or glossy optional, anti-glare, sunlight readable (AF coating available)

Touch Performance

• Linearity Accuracy: ≤1.5%
• Single-Point Touch Lifespan: >1,500,000 touches
• Scribble Lifespan: >100,000 times

Environmental Ratings

• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C
• Operating Humidity: 20% RH – 90% RH (non-condensing)

Surface Options

• Anti-glare for bright retail environments
• Anti-fingerprint (AF) coating for cleaner operation

Seamless Integration with Duobond Total Solutions

Combine this 4-wire resistive touch panel with Duobond LCD panels, professional OCA/LOCA optical bonding, and reliable driver boards to create a complete commercial display system. Optical bonding improves contrast and brightness while adding extra protection, and the driver solutions ensure stable, responsive stylus input. The result is a cost-effective yet professional-grade commercial display that meets the needs of medical, financial, and retail applications.

Ideal Applications for 4-Wire Resistive Touch Panels

This resistive touch panel is perfectly suited for professional commercial environments where stylus accuracy and value are priorities:

• Medical Equipment Interfaces: Diagnostic devices and hospital terminals that require reliable stylus or gloved-finger operation with easy cleaning.
• Financial and Banking Terminals: Secure payment stations and self-service kiosks that use stylus input for signatures and accurate data entry.
• Retail POS Systems: Point-of-sale terminals, checkout counters, and inventory management displays in busy retail or food-service settings where cost efficiency and performance are both essential.

Advantages Over Other Touch Solutions

The 4-wire resistive panel provides a more affordable solution than 5-wire versions while still delivering strong stylus accuracy and environmental resistance. When paired with Duobond optical bonding, it achieves enhanced optical performance and a clean appearance at a competitive price — making it the ideal choice for large-volume commercial display projects.

FAQ – Frequently Asked Questions

Q1: What makes the 4-wire resistive touch panel different from 5-wire versions? A: It offers excellent stylus precision and reliability at a lower cost, making it the practical choice for high-volume commercial display projects.

Q2: Is this panel designed for stylus use? A: Yes. It is optimized for precise single-point stylus operation and gloved-finger input.

Q3: How long can I expect the panel to last? A: It supports over 1.5 million single-point touches and 100,000 scribble touches, delivering strong performance for everyday commercial use.

Q4: What size and custom options are available? A: Standard sizes range from 4.3” to 23.8”. Custom sizes and irregular shapes are fully supported.

Q5: Does it integrate with Duobond driver boards? A: Yes. It works seamlessly with our driver solutions, including the AD-FHD-LVDS-L11.

Q6: Can it be used with optical bonding? A: Yes. It performs very well with OCA/LOCA bonding for improved contrast and durability.

Q7: Is it suitable for medical and financial commercial applications? A: Absolutely. Its stylus precision and reliable performance make it well-suited for these professional commercial uses.

Q8: Are special surface treatments available? A: Yes. Anti-glare and anti-fingerprint coatings can be added to meet your specific project needs.

Why Professionals Choose Duobond 4-Wire Resistive Touch Panels

• Decades of expertise in commercial display integration
• True one-stop Total Solutions: LCD + Resistive Touch + Optical Bonding + Driver
• Expert technical support from concept to mass production
• Competitive pricing with consistent quality
• Custom engineering tailored to your exact requirements

Duobond Display – Total Solutions for Commercial Displays

LCD + Touch Panel + OCA/LOCA Bonding + Driver Solution

The 4-Wire Resistive Touch Panel gives you reliable stylus performance and excellent value for professional commercial display applications.

Ready to add dependable and cost-effective stylus touch to your next medical, financial, or retail POS project? Contact the Duobond Display team today for samples, technical drawings, or a complete Total Solutions quotation.
