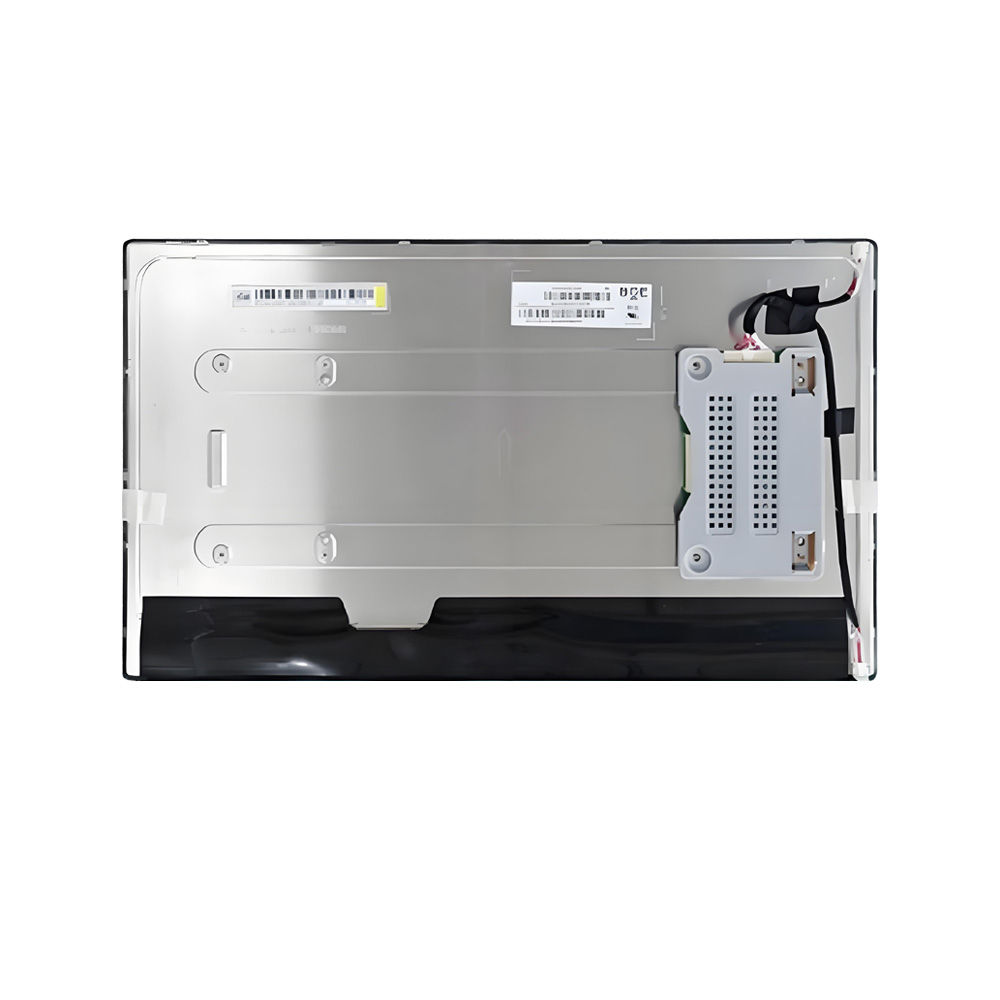

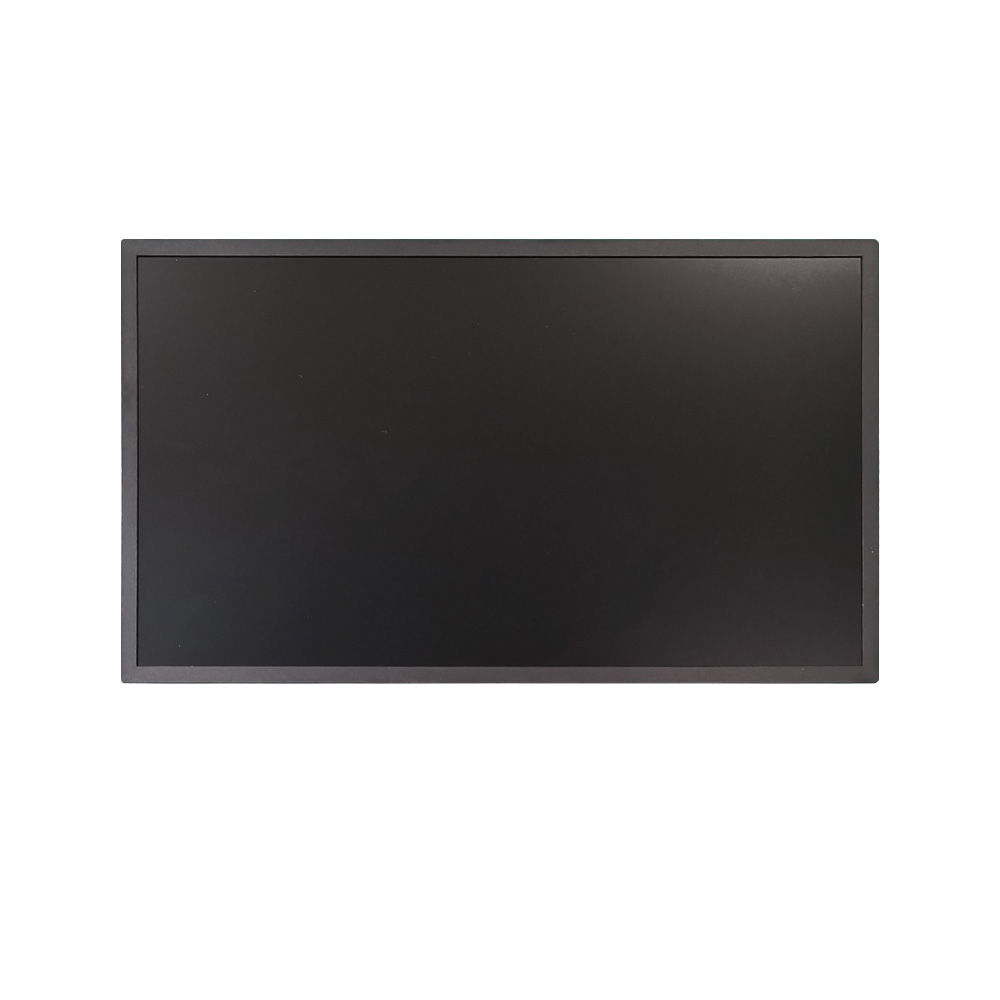

18.5 inch 1920x1080 30PIN LVDS 1000nits LCD Module Back to list

Description:

►Model:DV185FHM-R00
►Size : 18.5 inch
►Resolution:1920x1080 dots
►Active Area:408.96(H)×230.04 (V)mm
►Module size:430.4(W)×252.2(H)×18(D)mm
►Viewing Angle: 89/89/89/89
►Interface:30PIN LVDS
►Brightness (cd/m²):1000
►Operating Temperature:-20~+60℃
18.5 inch high brightness LCD module with wide temperature design, ideal for industrial and outdoor display applications. Customizable and reliable for harsh environments.

Inquire

18.5 Inch Wide Temperature Outdoor LCD Module DV185FHM-R00 with Custom Solution Support

Key Takeaways

18.5" outdoor LCD module designed for high brightness and wide temperature conditions.
Full HD 1920×1080 resolution with 1000 nits brightness ensures sunlight readability.

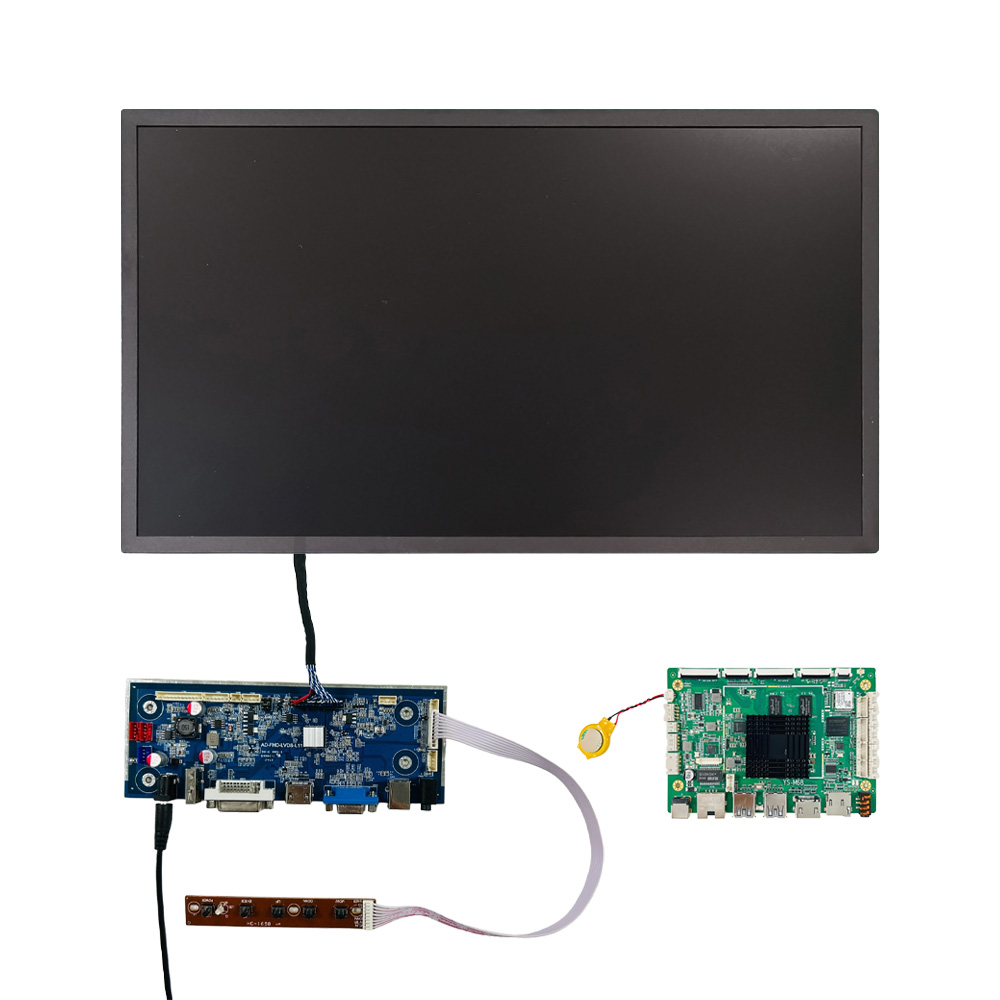

Supports customer-ready solutions including optional CTP, AD board, Android board, and cable set.
Robust LVDS interface enables seamless integration with embedded systems.
Ideal for digital signage, public kiosks, transportation displays, and industrial applications.

Product Overview

The DV185FHM-R00 is an 18.5 inch outdoor LCD module built to perform reliably under extreme environmental conditions. Its Full HD resolution and high brightness of 1000 nits ensure clear visibility even under direct sunlight. The module’s wide temperature range from –20°C to +60°C guarantees stable operation in both hot and cold climates.

A key feature of this product is its ability to be delivered as a **complete customer solution**. Clients can choose optional CTP touch panels, AD boards, Android boards, and full cable sets. This enables rapid integration into outdoor kiosks, transportation terminals, industrial displays, and digital signage without additional engineering effort.

Key Features

Sunlight-Readable Display

High brightness of 1000 nits combined with anti-glare optical layers ensures the display remains readable in bright outdoor conditions.

Wide Temperature Performance

Engineered for operation from –20°C to +60°C, this module maintains consistent performance year-round, suitable for both cold winters and hot summers.

Full HD Resolution

1920×1080 resolution provides sharp visuals, making it ideal for transportation screens, industrial HMIs, and outdoor advertising media.

Customer Solution Support

DV185FHM-R00 can be supplied with optional **CTP touch panels, AD boards, Android boards, and cable sets**, giving customers a ready-to-deploy solution for outdoor applications.

Industrial Connectivity

The 30-pin LVDS interface ensures reliable communication with embedded controllers and industrial systems.

Technical Specifications

Parameter	Specification
Model	DV185FHM-R00
Display Size	18.5 inch
Resolution	1920 × 1080
Brightness	1000 nits
Viewing Angle	89° / 89° / 89° / 89°
Interface	30-pin LVDS
Operating Temperature	–20°C ~ +60°C
Color Depth	16.7M Colors
Active Area	408.96 × 230.04 mm

Application Scenarios

Outdoor Kiosks

Thanks to optional **CTP, AD board, Android board, and cable sets**, this module can be deployed as a fully functional kiosk, reducing engineering time for integrators and ensuring reliable operation in outdoor conditions.

Transportation Displays

Bus stops, train stations, and metro signage require displays that remain visible under varying light and temperature. This module’s high brightness and wide temperature tolerance make it perfect for such environments.

Digital Signage & Advertising

Outdoor advertising benefits from vibrant visuals and sunlight readability. This module maintains color accuracy and sharpness even in strong ambient light.

Industrial Outdoor Panels

For outdoor industrial applications, the module offers stable performance in fluctuating environmental conditions, making it ideal for factory HMIs or remote monitoring stations.

Outdoor LCD Technology Explained

Outdoor LCDs are engineered to withstand high light exposure and extreme temperatures. High-brightness backlights, anti-glare surfaces, and wide viewing angles ensure clarity in direct sunlight. Thermal management and panel material selection allow long-term stability from sub-zero to high temperatures.

Additionally, DV185FHM-R00 integrates easily into custom solutions with optional CTP, AD board, Android board, and cable sets, demonstrating flexibility beyond a standard display.

Why Choose Duobond Outdoor LCD Displays

Duobond Display delivers professional-grade outdoor LCDs with extensive environmental testing. Each product is verified for sunlight readability, wide temperature operation, and durability. Our engineering support enables customers to deploy turnkey solutions using optional CTP, AD/Android boards, and cabling, saving integration time and ensuring reliable outdoor performance.

Frequently Asked Questions

Can this product be delivered as a complete solution?

Yes, the DV185FHM-R00 can be supplied with optional **CTP touch panels, AD boards, Android boards, and cable sets**, enabling a ready-to-deploy system for kiosks, signage, or industrial displays.

Is it suitable for extreme outdoor temperatures?

Yes, it operates reliably between –20°C and +60°C.

Can it be integrated with embedded controllers?

Yes, the 30-pin LVDS interface allows seamless integration with most industrial and commercial embedded systems.
