21.5 inch 1920x1080 30PIN LVDS 1500nits LCD Module Back to list

Description:

►Model:DV215FHM-R10
►Size : 21.5 inch
►Resolution:1920x1080 dots
►Active Area:478.656(H)×260.28(V)mm
►Module size:499(W)×286.2(H)×15.2(D)mm
►Viewing Angle: 89/89/89/89
►Interface:30PIN LVDS
►Brightness (cd/m²):1500
►Operating Temperature:-20~+60℃

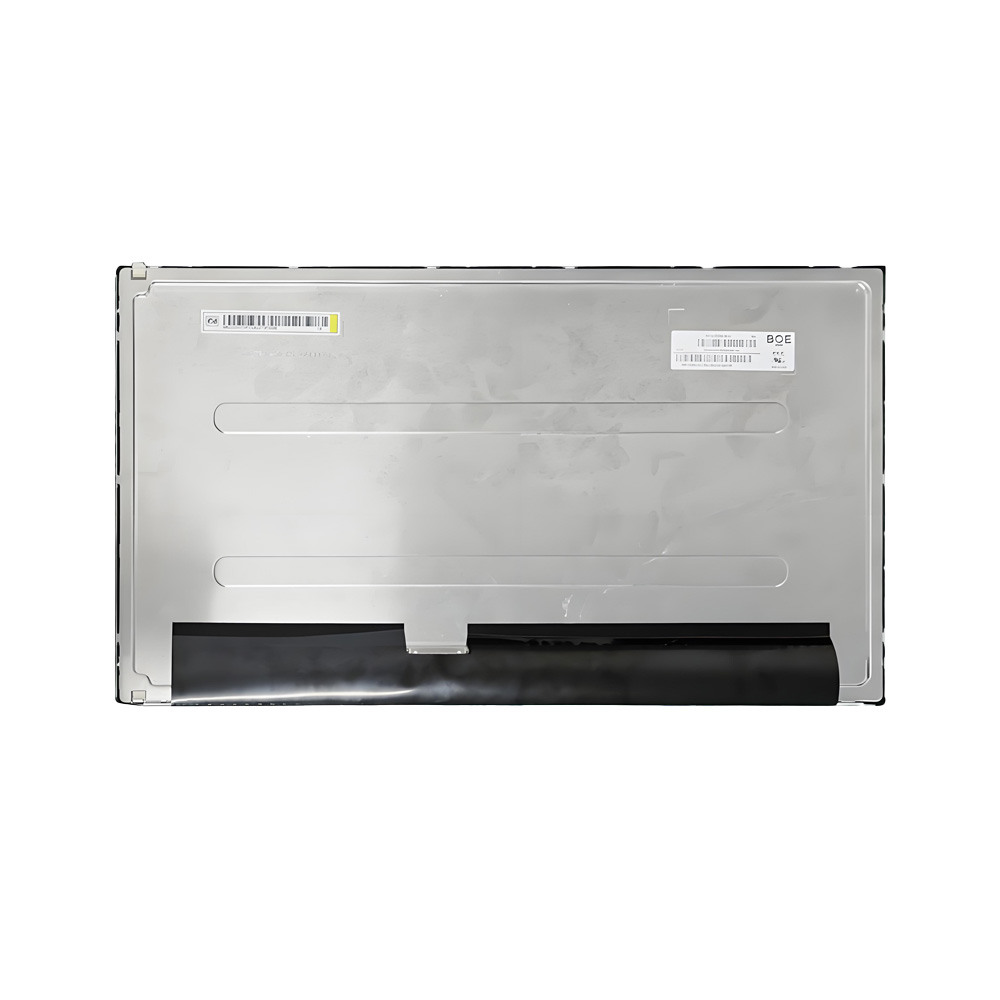

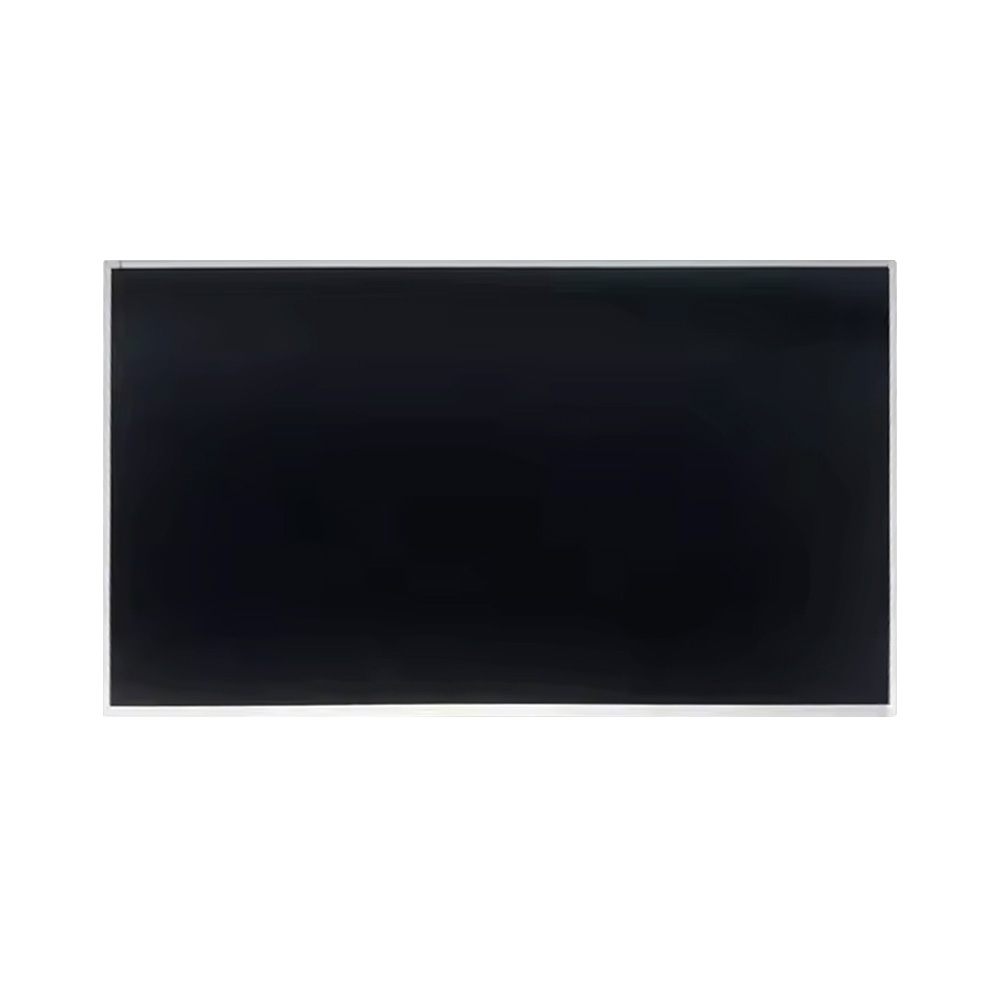

The DV215FHM-R10 is a 21.5 inch Full HD LCD module with wide temperature operation and ultra-high brightness, making it ideal for industrial equipment and outdoor advertising machines. Offered by Duobond Display, your trusted LCD module supplier.

Inquire

21.5 Inch High Brightness Wide Temperature Outdoor LCD Module DV215FHM-R10 with Custom Solution Support

Key Takeaways

21.5" Full HD outdoor LCD module with wide temperature operation (-20°C to +60°C).
Ultra-high brightness up to 1500 nits for excellent sunlight readability.

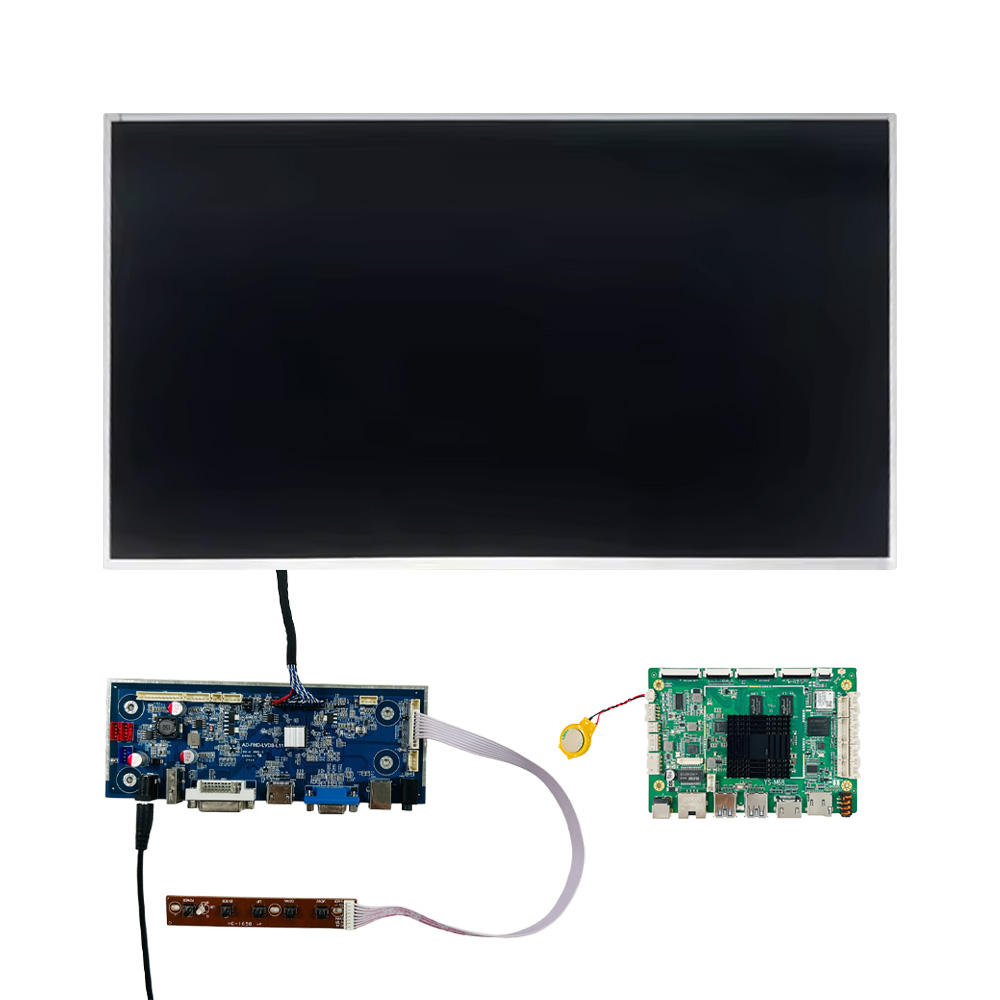

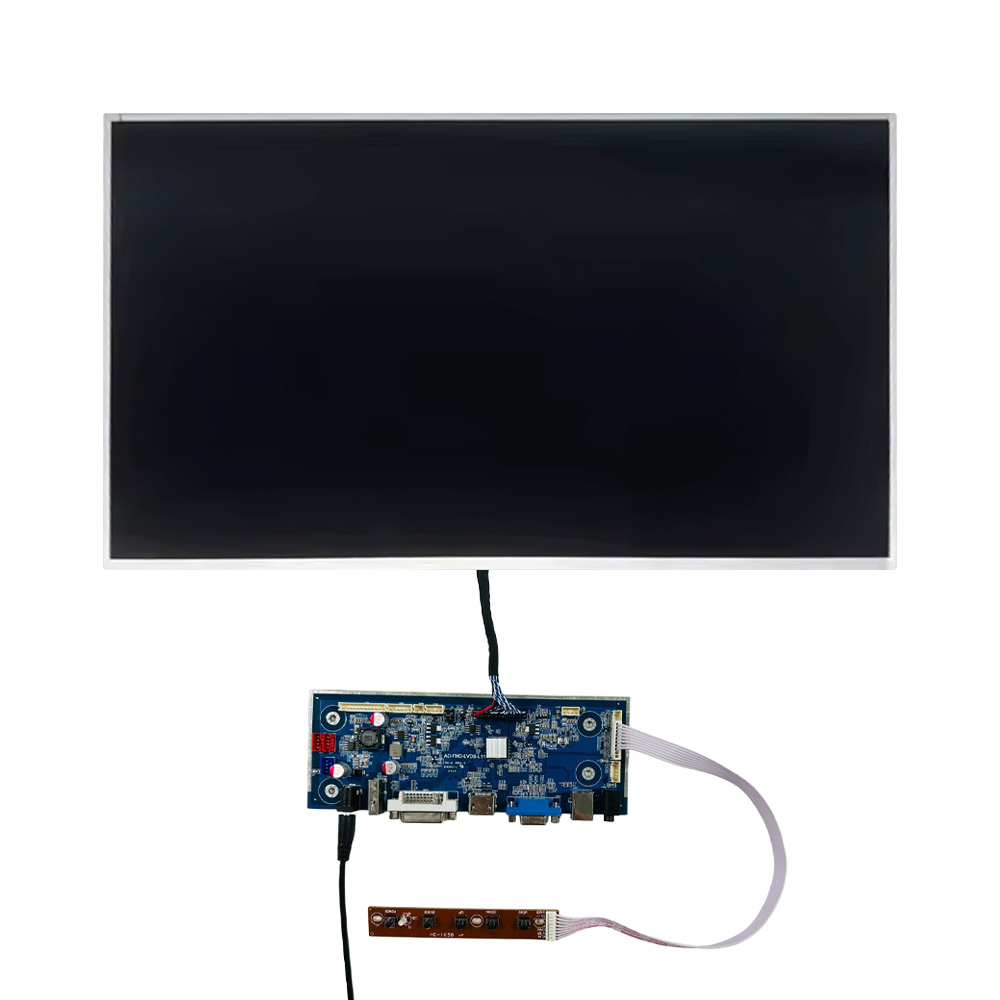

Supports customer-ready solutions including optional CTP touch, AD board, Android board, and cable set.
Industrial-grade LVDS interface ensures reliable integration.
Ideal for industrial equipment, outdoor kiosks, transportation terminals, and digital signage.

Product Overview

The DV215FHM-R10 is a 21.5-inch outdoor LCD module designed for demanding environments where high visibility and reliability are critical. With Full HD 1920×1080 resolution and ultra-high brightness, this module ensures clear readability even under direct sunlight.

It operates across a wide temperature range (-20°C to +60°C), making it suitable for outdoor advertising machines, industrial monitoring, and public information kiosks. This product can also be delivered as a **complete customer solution**, including optional **CTP touch panels, AD boards, Android boards, and cable sets**, enabling rapid deployment with minimal engineering effort.

Key Features

Wide Temperature Operation

Maintains consistent performance in temperatures from -20°C to +60°C, ensuring reliability in industrial and outdoor settings.

Ultra-High Brightness

With a typical brightness of 1200 nits and a maximum of 1500 nits, this display remains readable in sunlight, preventing image washout for outdoor kiosks and signage.

Full HD Resolution

1920×1080 pixels with 16.7 million colors deliver sharp visuals and rich color fidelity for industrial applications and advertising displays.

Customer Solution Support

The DV215FHM-R10 can be supplied with optional **CTP touch panels, AD boards, Android boards, and cable sets**, providing integrators with ready-to-use outdoor display systems.

Industrial Connectivity

Equipped with a 30-pin LVDS interface, this module offers stable signal transmission with embedded controllers and industrial systems.

Technical Specifications

Parameter	Specification
Model	DV215FHM-R10
Display Size	21.5 inch
Resolution	1920 × 1080
Active Area	478.656 × 260.28 mm
Module Size	499 × 286.2 × 15.2 mm
Viewing Angle	89/89/89/89
Interface	30-pin LVDS
Brightness	1500 nits
Operating Temperature	-20°C ~ +60°C
Display Colors	16.7M Colors

Application Scenarios

Industrial Equipment

Ideal for factory automation, transportation systems, and diagnostic instruments that require stable, high-visibility displays under varying environmental conditions.

Outdoor Advertising & Kiosks

With optional **CTP, AD board, Android board, and cable sets**, the module can be deployed as a turnkey outdoor kiosk or advertising machine, saving integrators time and effort.

Public Information Terminals

Perfect for transit displays, security monitoring, and public signage where clarity and durability are essential.

Outdoor LCD Technology Explained

Outdoor LCDs are designed to maintain readability under direct sunlight, combining high brightness, anti-glare surfaces, and wide viewing angles. Thermal management, robust backlighting, and environmental protection allow stable operation from -20°C to +60°C. Optional solution packages with CTP and board sets ensure flexible, ready-to-deploy systems.

Why Choose Duobond Outdoor LCD Displays

Duobond Display delivers industrial-grade outdoor LCDs that are sunlight-readable, wide-temperature rated, and fully tested for reliability. Our optional turnkey solutions with CTP, AD/Android boards, and cable sets provide customers with complete systems for fast integration and dependable outdoor performance.

Frequently Asked Questions

Can DV215FHM-R10 be delivered as a complete solution?

Yes, it supports optional **CTP touch panels, AD boards, Android boards, and cable sets** for turnkey outdoor applications.

Is it suitable for extreme outdoor temperatures?

Yes, it operates reliably from -20°C to +60°C.

Can it integrate with embedded controllers?

Yes, the 30-pin LVDS interface enables stable connection to industrial controllers.
