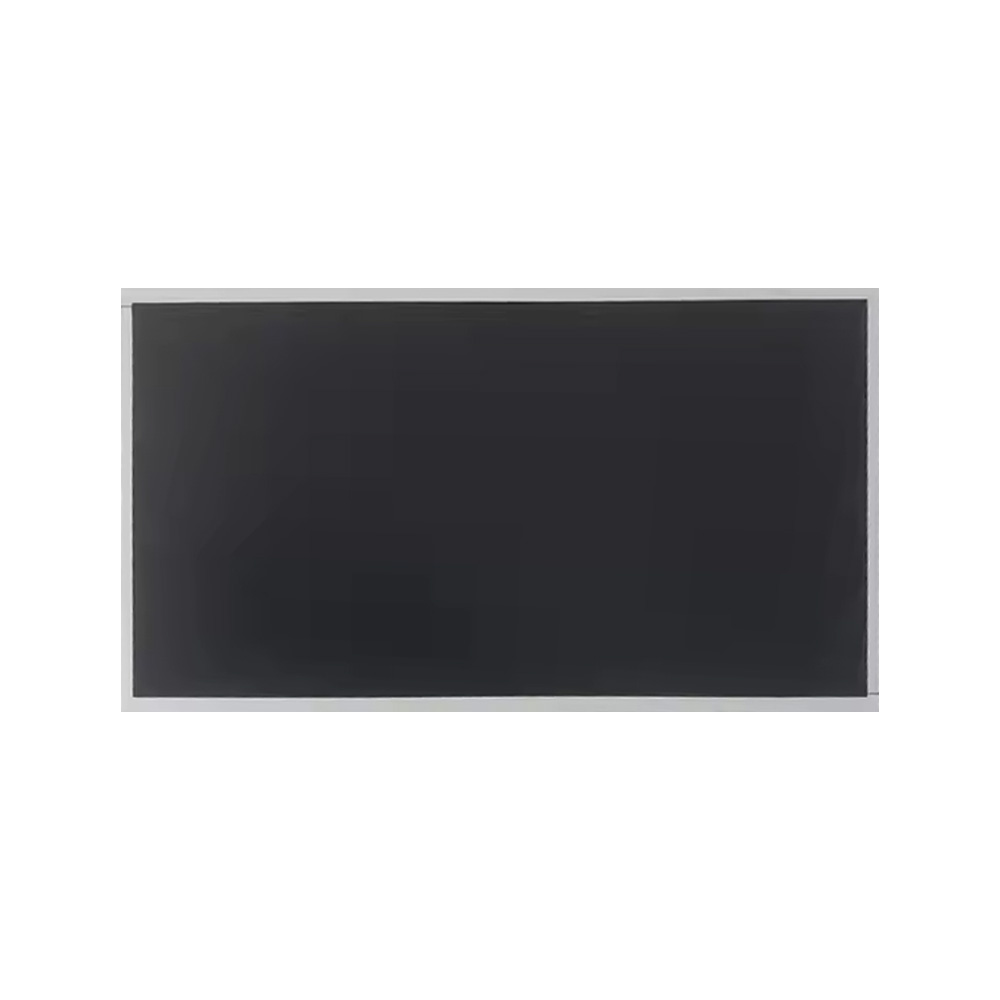

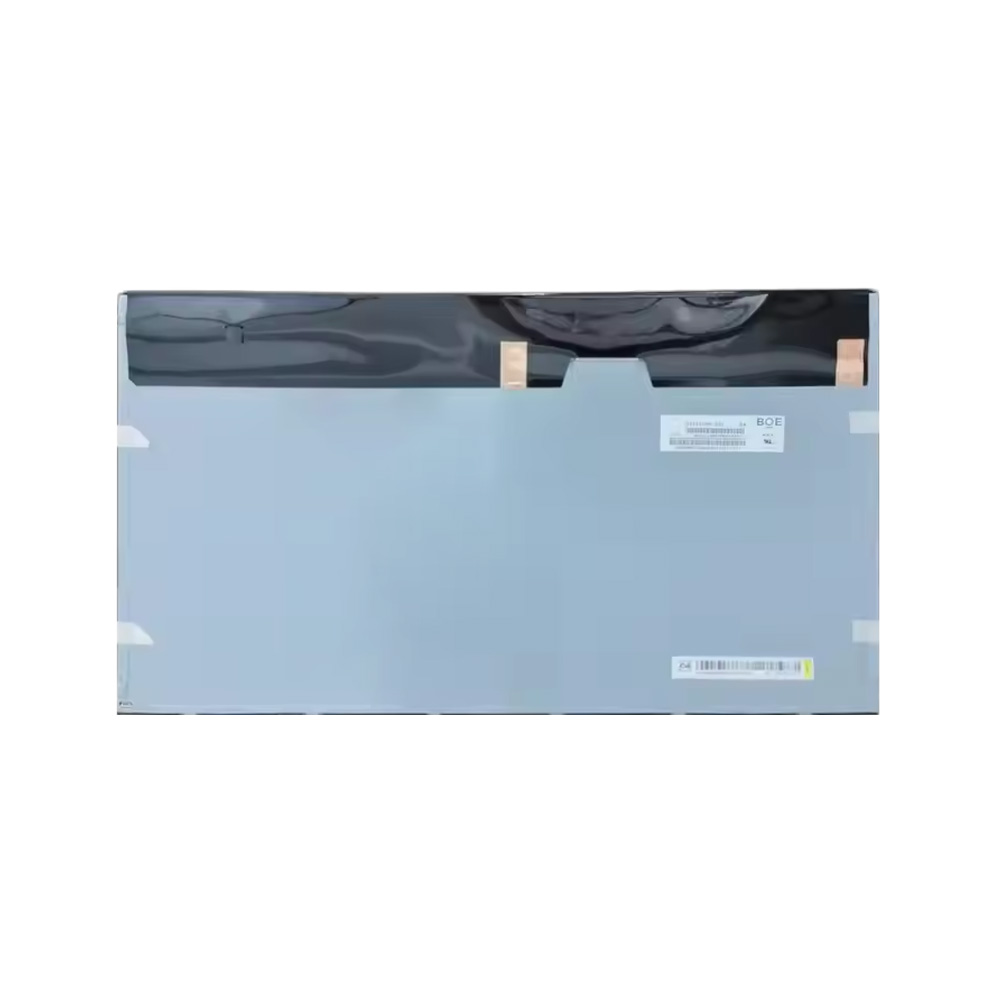

21.5 inch 1920x1080 30PIN LVDS 350nits LCD Module Back to list

Description:

►Model:DV215FHM-R01
►Size : 21.5 inch
►Resolution:1920x1080 dots
►Active Area:476.64(H)×268.11(V)mm
►Module size:495.6(W)×292.2(H)×11.2(D)mm
►Viewing Angle: 89/89/89/89
►Interface:30PIN LVDS
►Brightness (cd/m²):350
►Operating Temperature:-20~+85℃
The DV215FHM-R01 is a 21.5 inch Full HD LCD module with wide temperature operation and high brightness, perfect for industrial equipment and outdoor advertising machines. Offered by Duobond Display, your trusted LCD module supplier.

Inquire

21.5-Inch Wide Temperature High Brightness Outdoor LCD Module DV215FHM-R01 with Turnkey Solution Support

Key Takeaways

21.5" LCD module with Full HD 1920×1080 resolution and 16.7M color support.
Wide temperature operation from –20°C to +85°C, suitable for extreme environments.
High brightness for clear readability under direct sunlight (350 cd/m² typical luminance).
Optional turnkey solution support including CTP touch panels, AD boards, Android boards, and cable sets.
Reliable integration with industrial LVDS interface for seamless deployment in various systems.

Product Overview

The DV215FHM-R01 is a **21.5-inch high-performance LCD module** built to withstand extreme environmental conditions. With Full HD resolution and high brightness, this module ensures **crystal-clear visuals** in industrial control panels, outdoor kiosks, digital signage, and transportation systems.

Designed for **wide temperature operation (-20°C to +85°C)** and equipped with a robust backlight system, the DV215FHM-R01 maintains reliable performance under thermal stress, direct sunlight, and long-term use. Integrators can also opt for **turnkey solution packages**, including **CTP touch panels, AD boards, Android boards, and complete cable sets**, enabling ready-to-deploy solutions with minimal engineering effort.

Key Features

Wide Temperature Operation

Engineered for extreme environments, the DV215FHM-R01 performs consistently from **–20°C to +85°C**, making it ideal for industrial control panels, agricultural machinery, and outdoor digital signage exposed to heat or freezing conditions.

High Brightness & Sunlight Readability

With a typical luminance of **350 cd/m²** and “Normally Black” high-contrast mode, this module guarantees **clear readability even under direct sunlight**, ensuring that outdoor kiosks, public information terminals, and advertising displays maintain visibility in all conditions.

Full HD Visuals with True Color

Full HD 1920×1080 resolution and 16.7M color support deliver sharp, vibrant, and accurate image reproduction for industrial schematics, transportation information, and high-impact outdoor promotions.

Turnkey Solution Integration

The DV215FHM-R01 can be supplied with **CTP touch panels, AD boards, Android boards, and cable sets**, providing integrators with a **ready-to-use solution** for outdoor and industrial applications.

Industrial Connectivity

Equipped with a **30-pin LVDS interface**, this module enables **stable signal transmission** for integration with embedded controllers and industrial systems.

Technical Specifications

Parameter	Specification
Model Number	DV215FHM-R01
Display Size	21.5 inch
Resolution	1920 × 1080
Active Area	476.64 × 268.11 mm
Dimensional Outline	495.6 × 292.2 × 11.2 mm (typ.)
Pixel Pitch	0.24825 mm
Display Colors	16.7M
Display Mode	Normally Black
Typical Luminance	350 cd/m²
Operating Temperature	–20°C ~ +85°C
Storage Temperature	–30°C ~ +80°C
Interface	30-pin LVDS

Application Scenarios

Industrial Equipment

Factory automation HMIs, vehicle-mounted transportation terminals, and field test instruments benefit from reliable visualization even in extreme temperatures.

Outdoor Digital Signage & Advertising

Outdoor kiosks, advertising machines, and public information terminals maintain **high contrast and readability**, ensuring engagement in bright sunlight conditions.

Security & Monitoring

Embedded outdoor surveillance and monitoring systems achieve consistent display visibility, even under challenging environmental conditions.

Outdoor LCD Technology Explained

Outdoor LCDs use high-brightness backlighting, anti-glare surfaces, and wide viewing angles to maintain **image clarity in direct sunlight**. Reinforced components and thermal design ensure stable performance across wide temperature ranges. Modules with **turnkey solution options** (CTP, AD/Android boards, cables) allow rapid deployment in outdoor applications.

Why Choose Duobond Outdoor LCD Displays

Duobond Display specializes in **high-performance, industrial-grade LCD modules**. Every unit undergoes testing for temperature extremes, vibration, and sunlight readability. Our turnkey solution options—including **CTP, AD/Android boards, and cable sets**—enable customers to deploy ready-to-use outdoor systems quickly and reliably.

Frequently Asked Questions

Can the DV215FHM-R01 be delivered as a turnkey solution?

Yes, it supports **CTP touch panels, AD boards, Android boards, and cable sets** for rapid deployment.

Is this module suitable for extreme temperatures?

Yes, it operates reliably from **–20°C to +85°C**.

Can it be integrated with industrial LVDS systems?

Yes, the 30-pin LVDS interface ensures **stable connectivity** with embedded controllers.
