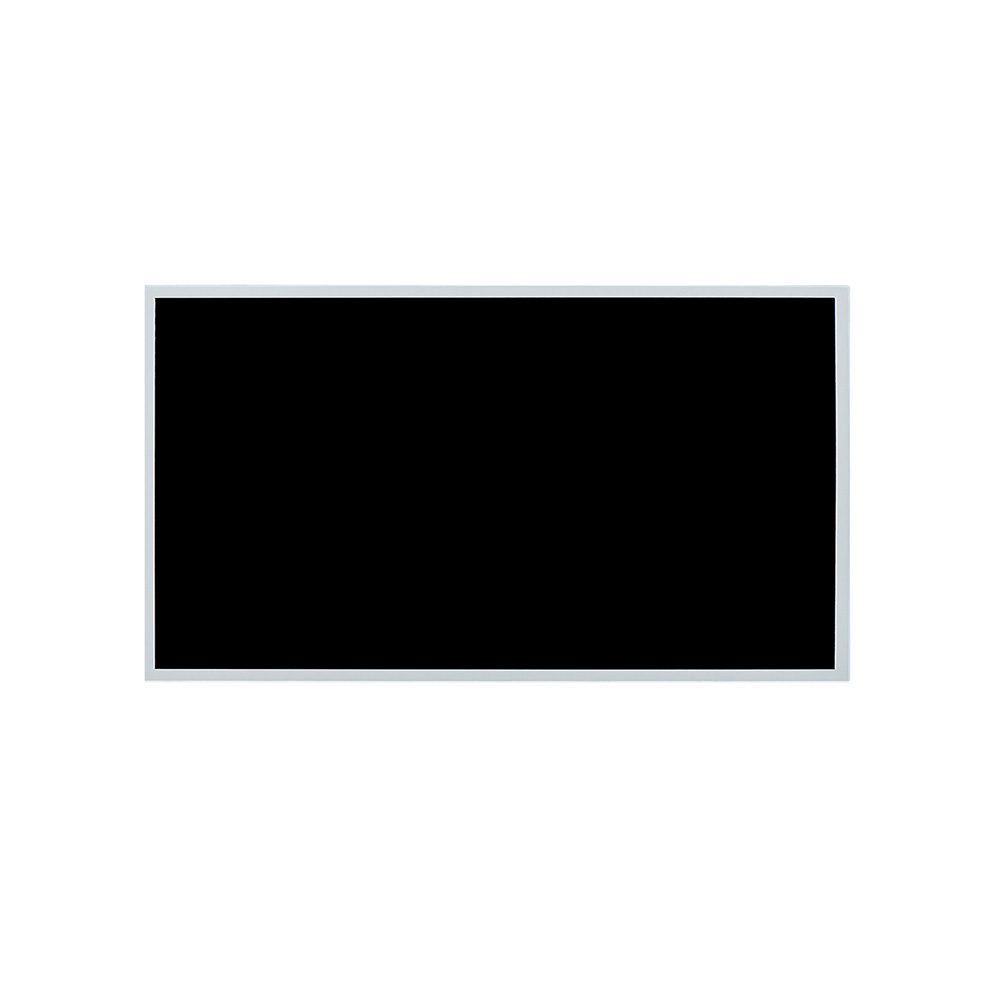

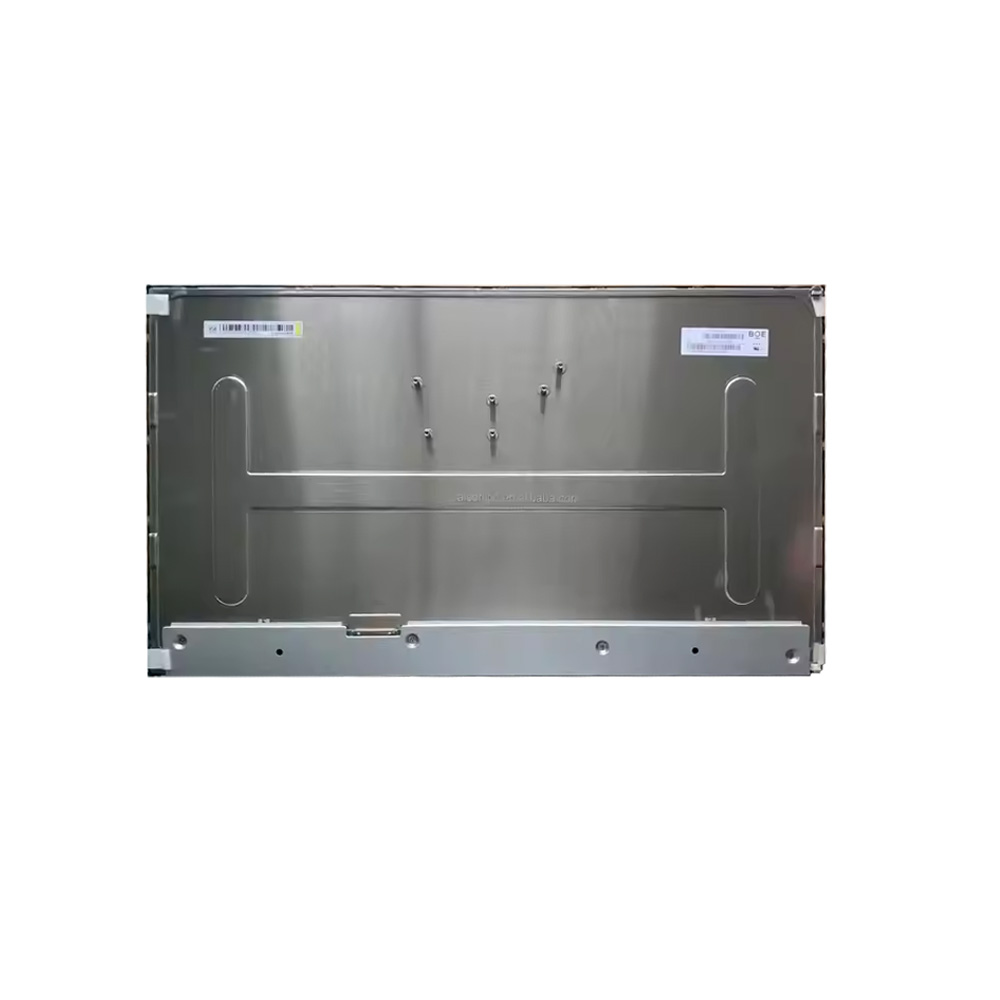

27 inch 1920x1080 30PIN LVDS 1500nits LCD Module Back to list

Description:

►Model:DV270FHM-R01
►Size : 27 inch
►Resolution:1920x1080 dots
►Active Area:597.888(H)×336.312(V)mm
►Module size:626(W)×363.8(H)×15(D)mm
►Viewing Angle: 89/89/89/89
►Interface:30PIN LVDS
►Brightness (cd/m²):1500
►Operating Temperature:-20~+60℃
High-performance 27 inch Full HD LCD module with wide temperature tolerance and 1500 cd/m² brightness, ideal for industrial systems and outdoor advertising displays.

Inquire

27-Inch Wide Temperature High Brightness Outdoor LCD Module DBT270FHB-N40 with Integrated Solution Options

Key Takeaways

27" Full HD 1920×1080 outdoor LCD module with 16.7M colors for sharp and vibrant visuals.
Wide operating temperature: –20°C to +80°C, suitable for extreme industrial and outdoor environments.
High brightness 1500 cd/m² with anti-glare surface for maximum readability under direct sunlight.
Optional turnkey display solutions: CTP touch panel, AD board, Android board, and cable set support.
Robust 50,000-hour LED backlight, 3H hardness surface, and wide 89° viewing angles.

Product Overview

The DBT270FHB-N40 is a 27-inch industrial and outdoor LCD module designed for challenging environments requiring durability, reliability, and high visual performance. With Full HD 1920×1080 resolution, it delivers crisp, vivid images while maintaining clarity in direct sunlight or high ambient lighting conditions.

Its wide temperature tolerance (–20°C to +80°C) ensures uninterrupted operation in outdoor kiosks, transportation terminals, factory automation systems, and other demanding applications. For integrators seeking faster deployment, this module supports*turnkey solutions, including CTP touch panels, AD boards, Android boards, and custom cable sets.

Key Features

Wide Temperature Resilience

Designed to operate in extreme climates, the DBT270FHB-N40 maintains full functionality across **–20°C to +80°C**. Storage tolerance ranges from **–30°C to +80°C**, ensuring safe transport and long-term reliability.

High Brightness & Anti-Glare Surface

The 1500 cd/m² typical brightness and anti-glare 3H surface treatment deliver optimal outdoor visibility, making the display easy to read even under direct sunlight.

Full HD Resolution & Rich Color

16.7M colors at 1920×1080 resolution produce detailed, vibrant visuals suitable for industrial schematics, interactive kiosks, and outdoor advertising.

Robust Build & Longevity

A 3H hardness surface protects against scratches, while the 50,000-hour LED backlight ensures long-term 24/7 operation in continuous-use applications.

Wide Viewing Angles

With 89° horizontal and vertical viewing angles, this LCD maintains consistent color and contrast, ideal for public displays and collaborative workstations.

Turnkey Display Solutions

Optional integration with CTP touch panels, AD boards, Android boards, and cable sets allows the DBT270FHB-N40 to function as a complete display solution, reducing setup time and engineering effort for system integrators.

Technical Specifications

Parameter	Specification
Model	DBT270FHB-N40
Screen Diagonal	27 inch
Resolution	1920 × 1080 (FHD)
Active Area	597.6 × 336.15 mm
Outline Dimensions	626 × 363 × 12.5 mm (Typ.)
Brightness	1500 cd/m²
Contrast Ratio	1000:1
Display Colors	16.7M
Viewing Angle	89° / 89° / 89° / 89°
Response Time	14 ms
Surface Treatment	Anti-Glare, 3H Hardness
Operating Temperature	–20°C ~ +80°C
Storage Temperature	–30°C ~ +80°C
Interface	LVDS, 2-channel, 8-bit
Backlight Lifetime	50,000 hours

Application Scenarios

Industrial Equipment

Ideal for factory automation HMIs, control panels, and industrial terminals, ensuring reliable visualization in harsh environments.

Outdoor Advertising Machines

High brightness and wide temperature tolerance make it perfect for bus stop displays, interactive kiosks, and public signage.

Transportation & Smart Terminals

Provides clear, sunlight-readable visuals for railway stations, airports, and vehicle-mounted display systems.

Public Information Displays

Outdoor wayfinding systems and digital notice boards benefit from reliable 24/7 operation and consistent display quality.

Outdoor LCD Technology Explained

Outdoor LCDs combine high brightness backlighting, anti-reflection treatments, wide viewing angles, and reinforced components to maintain readability in bright light and extreme temperatures. Modules with optional turnkey solutions including CTP, AD/Android boards, and cable sets allow rapid system deployment without additional engineering.

Why Choose Duobond Outdoor LCD Displays

Duobond Display delivers industrial-grade LCD solutions with rigorous quality control, reliability testing, and environmental resilience. Optional turnkey display solutions accelerate integration and reduce system development time, making DBT270FHB-N40 a practical choice for demanding outdoor or industrial projects.

Frequently Asked Questions

Can the DBT270FHB-N40 be supplied as a turnkey display solution?

Yes, it supports optional CTP touch panels, AD boards, Android boards, and cable sets.

What is the operating temperature range?

The module operates reliably from –20°C to +80°C, with storage up to –30°C ~ +80°C.

Is it suitable for continuous 24/7 outdoor use?

Yes, the 50,000-hour LED backlight and robust design support long-term continuous operation.
