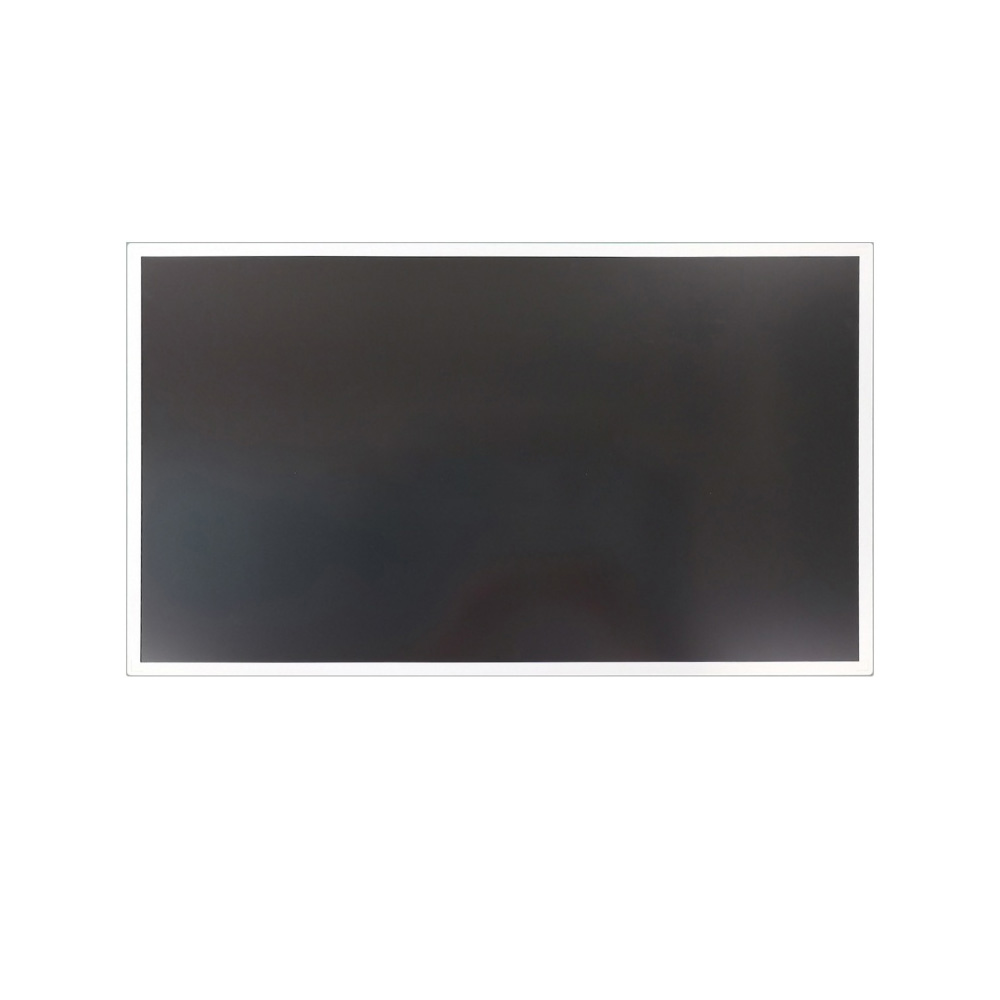

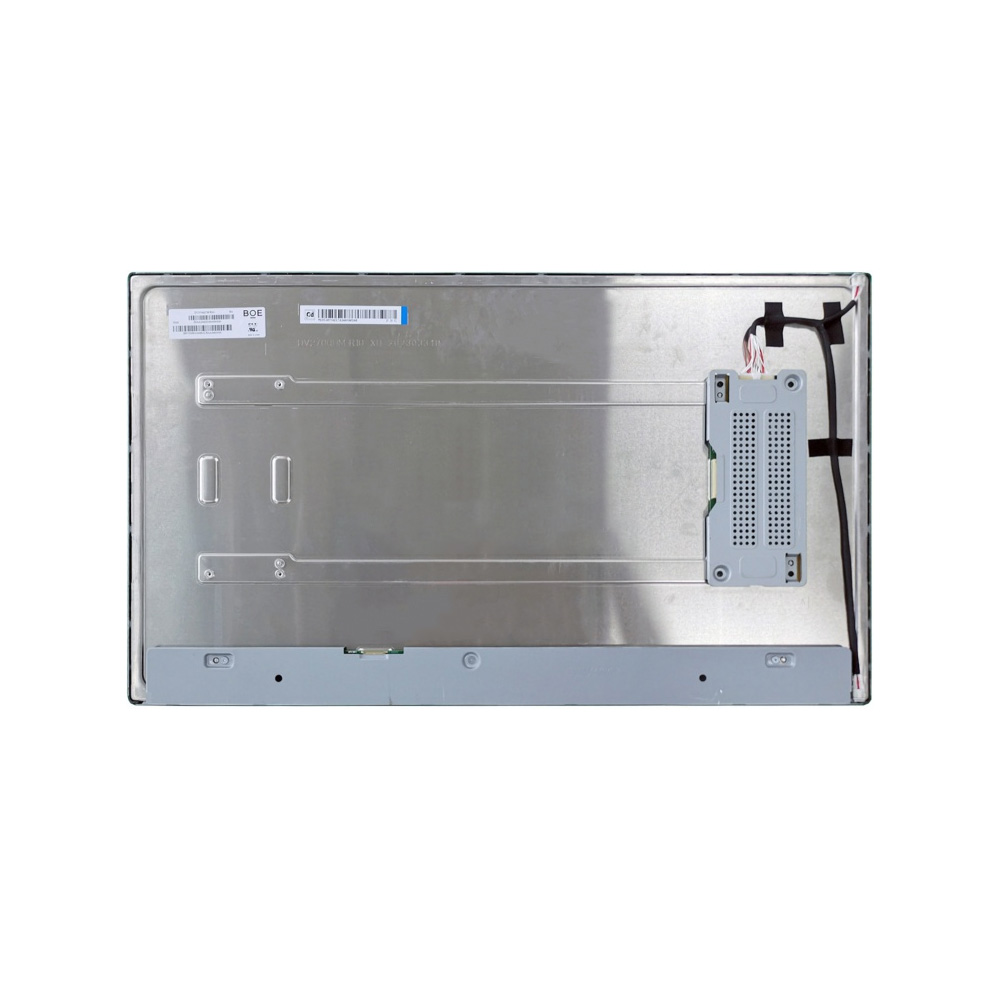

27 inch 3840x2160 30PIN EDP 1000nits LCD Module Back to list

Description:

►Model:DV270QUM-R10
►Size : 27 inch
►Resolution:3840x2160 dots
►Active Area:596.736(H)×335.664(V)mm
►Module size:623.34(W)×362.3(H)×18.7(D)mm
►Viewing Angle: 89/89/89/89
►Interface:30PIN EDP
►Brightness (cd/m²):1000
►Operating Temperature:-20~+60℃
The 27 inch 1920×1080 LCD module offers 1000 cd/m² brightness and –30~+80°C wide temperature resilience, making it perfect for industrial equipment and outdoor advertising machines. Designed and supplied by Duobond Display, your trusted partner for custom LCD display solutions.

Inquire

27-Inch 4K Wide Temperature High Brightness Outdoor LCD Module DBT270FHN-NW0 with Turnkey Solution Support

Key Takeaways

27" Ultra HD 3840×2160 ADS LCD module delivering sharp, vibrant visuals for industrial and outdoor applications.
Wide operating temperature: –30°C to +80°C ensures reliable performance in extreme conditions.
High brightness 1000 cd/m² with anti-glare 3H surface for clear outdoor readability.
Optional turnkey solutions: CTP touch panel, AD board, Android board, and custom cable sets available.
Durable and robust, supports 24/7 operation with wide viewing angles of 89° in all directions.

Product Overview

The DBT270FHN-NW0 is a 27-inch 4K outdoor LCD display module engineered for industrial control systems, outdoor kiosks, and advertising machines. With 3840×2160 resolution and ADS technology, it delivers detailed, vibrant imagery while maintaining consistent color accuracy across wide viewing angles.

Designed for extreme temperatures (–30°C to +80°C), this module maintains stable operation even in harsh industrial environments or outdoor installations. Optional CTP touch panels, AD boards, Android boards, and cable sets provide integrators with a ready-to-use solution, reducing setup time and development complexity.

Key Features

High Brightness & Anti-Glare Surface

The 1000 cd/m² luminance combined with an anti-glare haze 1% surface ensures readability under direct sunlight and high ambient light, ideal for outdoor advertising and public information displays.

Wide Temperature Resilience

Engineered to function reliably from –30°C to +80°C, the module withstands extreme environmental conditions, including scorching summers and freezing winters.

4K Resolution & ADS Visual Quality

ADS panel technology with Full HD 3840×2160 resolution and 16.7M colors delivers superior color accuracy, sharpness, and contrast (1000:1), suitable for detailed industrial schematics, interactive kiosks, and high-end advertising content.

Durable Build & 24/7 Operation

With a 14 ms response time, 3H surface hardness, and rugged construction, the module supports continuous operation in industrial and outdoor applications while maintaining optical and electrical stability.

Turnkey Solution Support

Optional integration with CTP touch panels, AD boards, Android boards, and cable sets enables rapid deployment for OEMs and system integrators, delivering a complete, ready-to-use display system.

Technical Specifications

Parameter	Specification
Model	DBT270FHN-NW0
Screen Size	27 inch
Resolution	3840 × 2160 (4K)
Brightness	1000 cd/m²
Contrast Ratio	1000:1
Display Colors	16.7M (8-bit True)
Display Mode	ADS, Normally Black
Viewing Angle	89°/89°/89°/89°
Response Time	14 ms (Rising + Falling)
Surface Treatment	Anti-Glare, Haze 1%, Hardness 3H
Operating Temperature	–30 ~ +80°C
Storage Temperature	–30 ~ +80°C
Weight	3.75 kg
Product Dimensions	626.6 × 365.35 × 11.5 mm (Typ.)

Application Scenarios

Outdoor Advertising Machines

Perfect for kiosks, bus shelters, and digital billboards requiring high brightness, 4K resolution, and wide temperature tolerance.

Industrial Equipment

Reliable choice for HMIs, control panels, and factory automation consoles where durability and clarity are critical.

Transportation Systems

Ideal for airport, train station, and vehicle-mounted displays where environmental conditions vary significantly.

Energy & Utilities

Designed for monitoring systems in power plants, oil fields, and outdoor infrastructure demanding rugged and reliable displays.

Outdoor LCD Technology Explained

Outdoor LCD modules combine high-brightness backlighting, anti-reflection surfaces, wide viewing angles, and reinforced industrial components to ensure readability in sunlight and durability under extreme temperatures. Integration of optional CTP, AD/Android boards, and custom cables allows quick deployment without additional system engineering.

Why Choose Duobond Outdoor LCD Displays

Duobond Display specializes in industrial-grade and commercial LCD solutions. Each module is rigorously tested for temperature extremes, vibration, and sunlight readability, ensuring long-term reliability. Optional turnkey solutions accelerate deployment and reduce system integration time for OEMs and system integrators.

Frequently Asked Questions

Can DBT270FHN-NW0 be supplied as a turnkey solution?

Yes, this module supports CTP touch panels, AD boards, Android boards, and cable sets for complete system integration.

What is the brightness for outdoor readability?

Typical brightness is 1000 cd/m², optimized for high ambient light environments.

Is this module suitable for continuous 24/7 operation?

Yes, it is built with industrial-grade durability to support continuous operation with stable optical and electrical performance.
